Description:

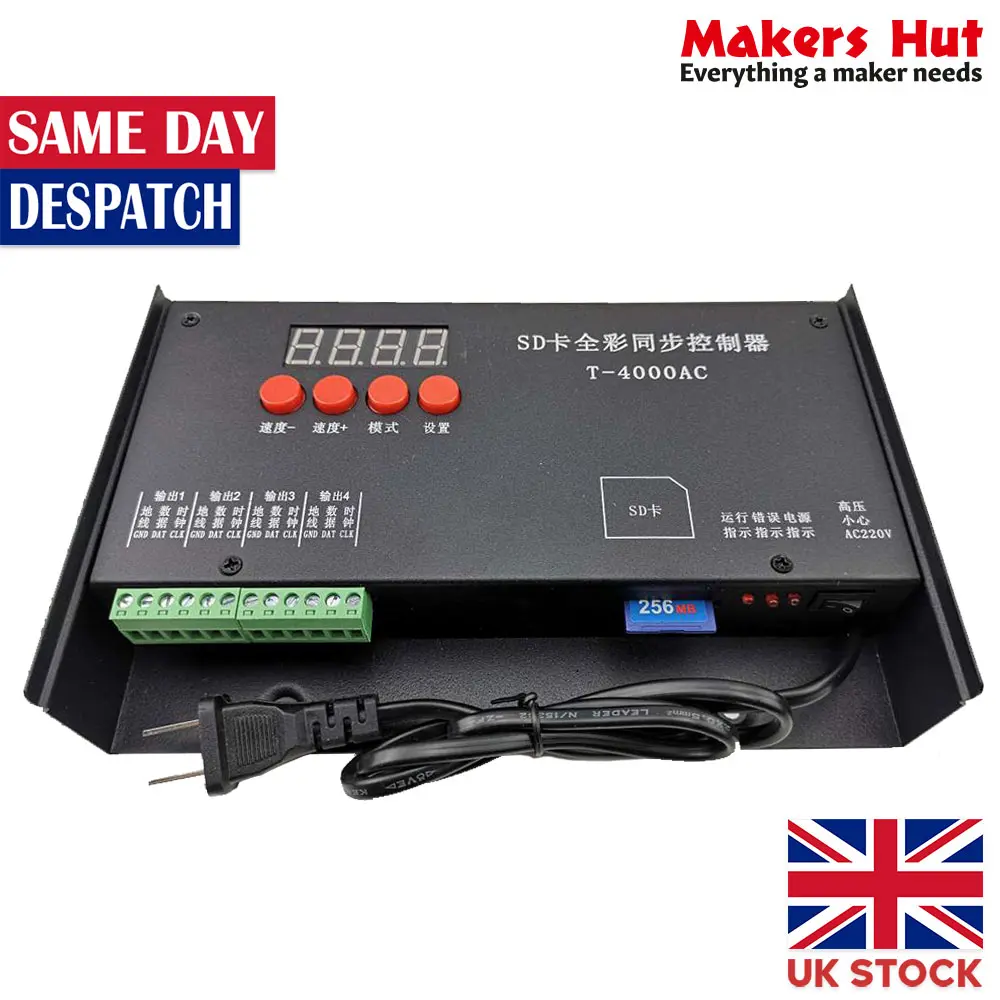

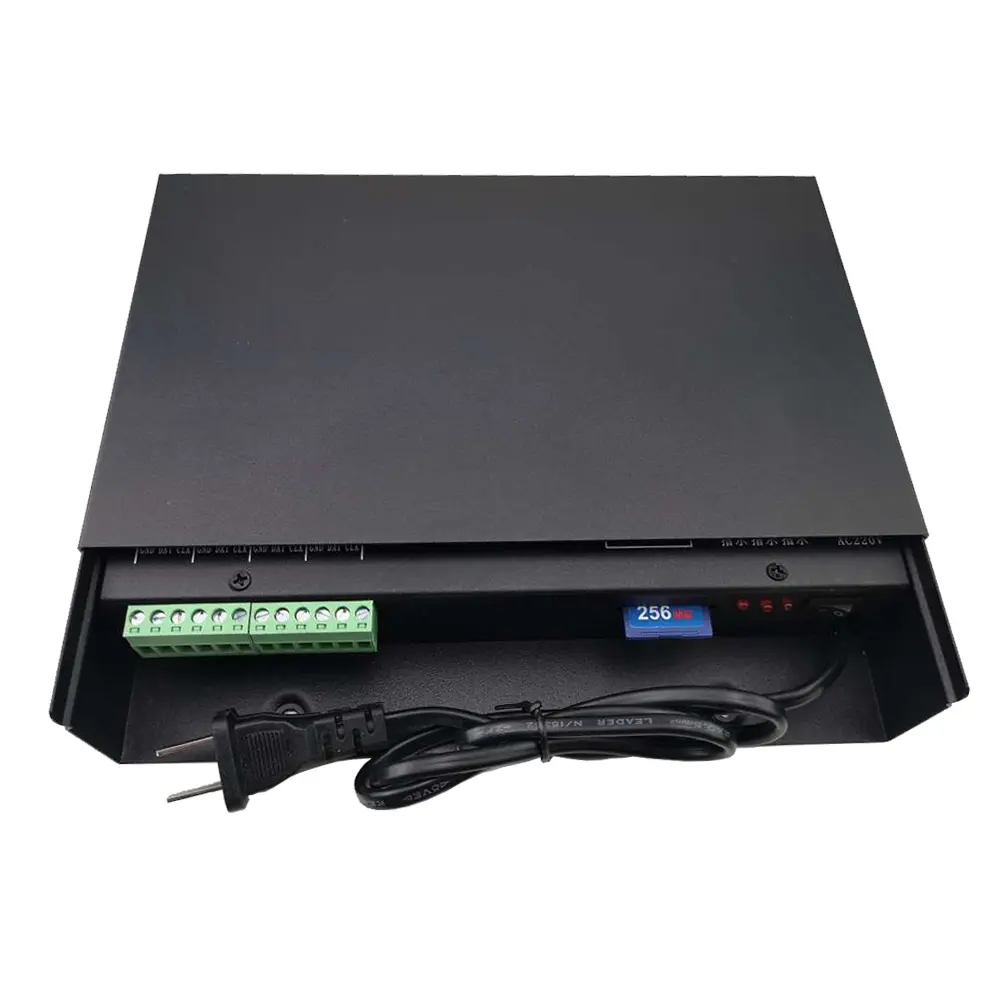

T-4000AC, SD card LED pixel controller;off-line; SPI signal output:1024pixes*4ports=4096pixels
T-4000AC System features
- 32-65536 Gray,Support software Gamma correction.
- Support point, line, surface, rules and special-shaped handle.
- Four-port output,each can support 1024 pixels.
- Off-line(SD Card) control, play back content stored in the SD card.
- K-4000CK store a maximum of 16 programs,copy multiple files to the SD card in order.
- The program must be named in orders . Ex. :00_1.led, 01_1.led, 02_1.led.
- Compatible with single line or double line chips.
NOTE:
- When controller load lamps 512 point pixels the frame rate speed can reach up to 30fps/sec
- When controller load lamps 768 point pixels the frame rate speed can reach up to 25fps/sec
- When controller load lamps 1024 point pixels the frame rate speed can reach up to 22fps/sec
The above paramaters are an example of 1903 agreement IC, different IC have difference.
| IC Type | LedEdit Softwarecorresponding mode | Load pixel | Note |
| TM1803,TM1804,TM1809,TM1812 | T-4000-TM1803 | 4096pixels | Have high/low speed |
| TM1829 | T-4000-TM1829 | 4096pixels | have high/low speed |
| UCS1903,UCS1903B ,UCS1909,UCS1912 | T-4000-UCS1903 | 4096pixels | have high/low speed |
| UCS2903,UCS2909,UCS2912, | T-4000-UCS2903 | 4096pixels | have high/low speed |
| UCS3903 | T-4000-UCS1024 | 4096pixels | |
| UCS6909,UCS6912,UCS7009,UCS5903 | T-4000-UCS6909 | 4096pixels | |
| TA9909 | T-4000-TA9909 | 4096pixels | have high/low speed |
| MBI6021 | T-4000-MBI6021 | 4096pixels | |
| WS2811 | T-4000-WS2811 | 4096pixels | have high/low speed |
| INK1003 | T-4000-INK1003 | 4096pixels | have high/low speed |
| TLS3100 | T-4000-TLS3100 | 4096pixels | have high/low speed |
| SM16711 | T-4000-SM16711 | 4096pixels | have high/low speed |
| SM16716 | T-4000-SM16716 | 4096pixels | |
| SM16726 | T-4000-SM16726 | 4096pixels | |
| LPD6803,D705,1101 | T-4000-6803 | 4096pixels | |
| LPD8806,LPD8809 | T-4000-8806 | 4096pixels | |
| LPD1882,LPD1889 | T-4000-1882 | 4096pixels | have high/low speed |
| LPD6812 | T-4000-6812 | 4096pixels | have high/low speed |
| LPD6813 | T-4000-6813 | 4096pixels | |
| P9813 | T-4000-P9813 | 4096pixels | |
| TM1903,TM1904,TM1909,TM1912 | T-4000-TM1903 | 4096pixels | have high/low speed |
| WS2801,WS2803 | T-4000-WS2801 | 4096pixels | |
| DS189 | T-4000-DS189 | 4096pixels | |
| TLS3001,TLS3008 | T-4000-TLS3001 | *pixels | |
| APA102 | T-4000-APA102 | 4096pixels | |
| BS0815 | T-4000-0815 | 4096pixels | |
| GW6203 | T-4000-GW6203 | 4096pixels | |
| BS0825 | T-4000-0825 | 4096pixels | |
| BS0901 | T-4000-0901 | 4096pixels |
Definition of Buttons:
| Buttons | Difinition | |
| SET | Save Settings ( to save current settings file and the playback speed ) | |
| MODE | Change programs | |
| SPEED+ | Speed up | Press speed+ and speed- on the same time the programwill play circularly. |
| SPEED- | Speed down | |
| DC5V | Power input |
| POWER | Power light |
| ERROR | Error indicator |
| SD/SD CARD | SD card slot |
| CLK | Clock line |
| DAT | Data line |
| GND | Ground wire |
Mode of connection
T-4000AC must be work single, can not cascade more than one.
Memory card:
Type: SD card (Suggest Using High-Speed SD Card)
Capacity: 128MB-2GB
Store File: *.led
Physical parameters:
Working Temperature: -30-85 Degree Celsius
Working Voltage: DC5V or DC 12-24V Input
Power: 5W
Weight: 0.85kg
Size:
What you will receive:
- T-4000AC RGB LED Pixel controller
- 256MB SD Card
LedEdit 2013 software link is available after your purchase, please send a note if you need it.
