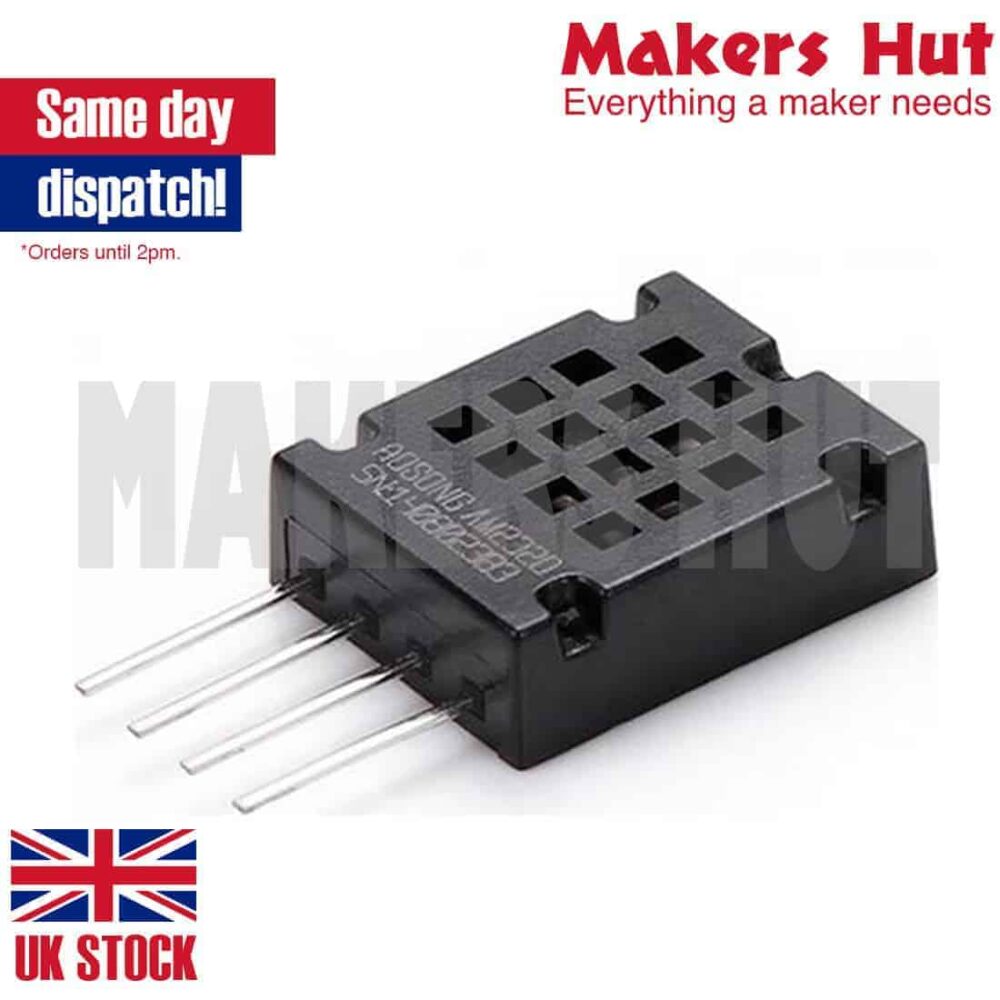

AM2320 Digital Temperature and Humidity Sensor Module Arduino Raspberry Pi

  • Magic Cup Light Module KY-027 LED DIY CHIP Arduino
  • Sensor Shield V5.0 Sensor Expansion Board for Arduino - Robot Parts

£4.99

20 in stock

SHT10 SHT11Digital Temperature and Humidity Sensor AM2320
AM2320 Digital Temperature and Humidity Sensor Module Arduino Raspberry Pi

£4.99

SKU: ARD-SHI-081 Category: Shields and Accessories Tags: AM2320, Digital Temperature, Humidity Sensor, SHT10, SHT11
  • Magic Cup Light Module KY-027 LED DIY CHIP Arduino
  • Sensor Shield V5.0 Sensor Expansion Board for Arduino - Robot Parts
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description

AM2320 digital temperature and humidity sensor is a calibrated digital signal output already contains temperature and humidity sensor complex. Temperature and humidity using a dedicated capture technology to ensure that products with high reliability and excellent long-term stability. Sensor includes a capacitive sense element and a wet-precision temperature measurement devices integrated and connected with a high-performance microprocessors. The product has excellent quality, fast response, anti-interference ability, high cost and other advantages.

AM2320 single communication bus standard I2C two means of communication. Standard single-bus interface, the system integration becomes simpler and faster. Ultra-small size, low power consumption, signal transmission distance up to 20 meters or more, making it the best choice for all kinds of applications and even the most demanding applications. I2C communication using standard communication sequence, the user can communicate directly linked to the I2C bus, no additional wiring, simple to use. Two means of communication are used as humidity, temperature and check CRC and other digital information directly by temperature compensated output, users do not need to calculate the secondary digital output, and no need to compensate for temperature and humidity, you can get an accurate temperature and humidity information. Two means of communication are free to switch, the user can freely choose, easy to use, it should be broad areas. Products for the 4-wire, easy connection, special packages can be provided according to user needs.

Product Characteristics

  • Ultra-small size
  • Ultra-low voltage operation
  • Excellent long-term stability
  • Standard I2C and single bus output

Application

HVAC, dehumidifiers, testing and inspection equipment, consumer goods, automotive, automation, data loggers, weather stations, home appliances, humidity control, medical, and other relevant humidity measurement and control.

Product highlights

Completely interchangeable, low cost, long-term stability, relative humidity and temperature measurement, long distance signal transmission, the digital signal output, precise calibration, low power consumption, standard single-bus digital interface standard I2C bus digital interface, communication can be freedom of choice.

Technical parameters

Supply Voltage: 3.3 V to 5.5 V
Average Current Consumption: 0,35 has

Temperature

Measurement Range: -40 °C to +80 °C
Resolution: 16-bit (0.1 °C)
Accuracy: 0.5 °C
Response Time: 2 h

Humidity

Measuring Range: 0% to 99.9 % RH
Resolution: 16-bit (0.1% RH*)
Accuracy: ±3 RH* (at 25 °C)
Measuring Range: 2 sec

What you will receive

1 x AM2320 Digital Temperature and Humidity Sensor

Weight 10 g
