RFID module RC522 Kits S50 13.56 Mhz 6cm With Tags SPI Write & Read for arduino

£3.99

22 in stock

RFID module RC522 Kits S50 13.56 Mhz 6cm With Tags SPI Write & Read for arduino

£3.99

SKU: ARD-SHI-051 Category: Shields and Accessories
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

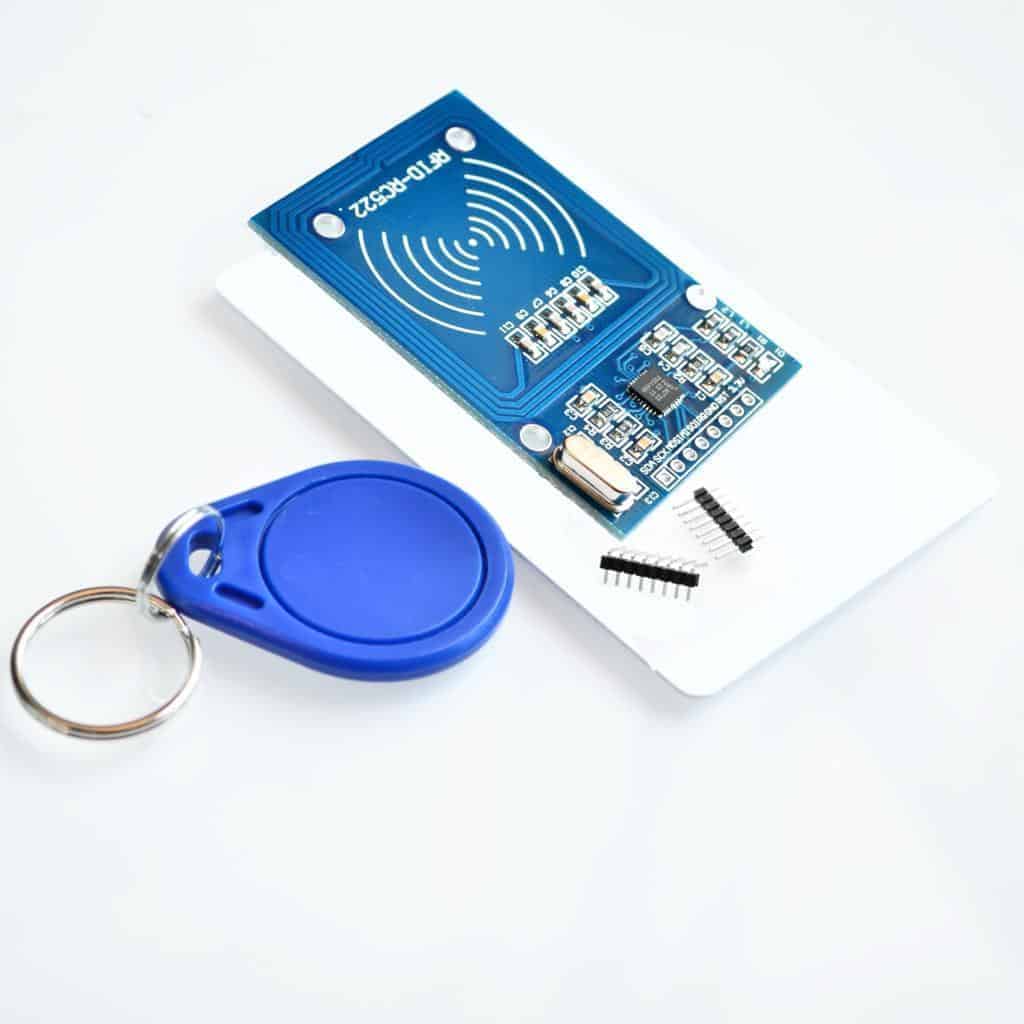

MF522-AN module uses Philips MFRC522 original chip design circuit card reader, easy to use, low cost, suitable for equipment development, the development of advanced applications reader users, the need for RF card terminal design / production users. This module can be directly loaded into the variety of reader molds.Module uses voltage of 3.3V, simple few lines through the SPI interface directly with any user CPU board is connected to the communication module can guarantee stable and reliable work, reader distance.

Specification:

Module Name: MF522-ED
Working current: 13 – 26mA / DC 3.3V
Idle current: 10 – 13mA / DC 3.3V
Sleep current: Less than 80uA
Peak current: Less than 30mA
Working frequency: 13.56MHz
Supports card: Mifare1 S50, mifare1 S70, mifare Ultralight, mifare Pro, mifare Desfare
Great for DIY project

Picture is for illustration purposes only, actual item may vary in colours

What you will receive:

1x RFID-RC522 Module
1x Standard empty RC522 Card
1x RC522 Key
1x Break away pin straight
1x Break away pin 90 degree

Weight 40 g
EAN

Does not apply

Brand

Makers Hut

MPN

Does not apply
