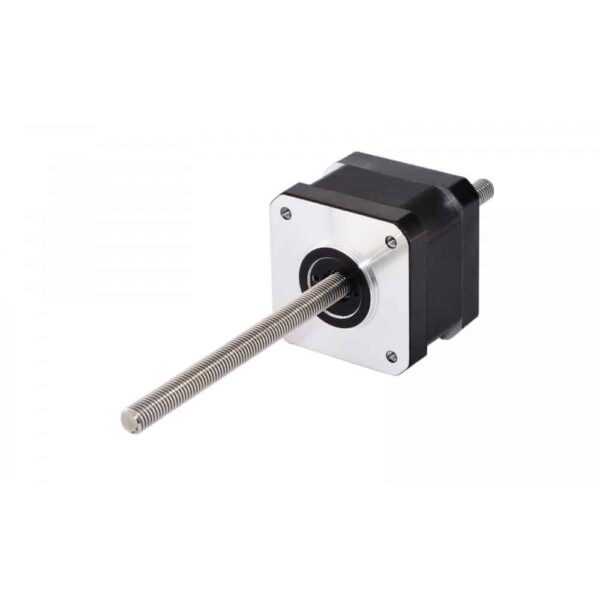

Non-captive Nema17 Linear Stepper - 3D Printer Paste Extruder

Length	150mm, 300mm, 400mm
Ships from	Cardiff, UK

Description:

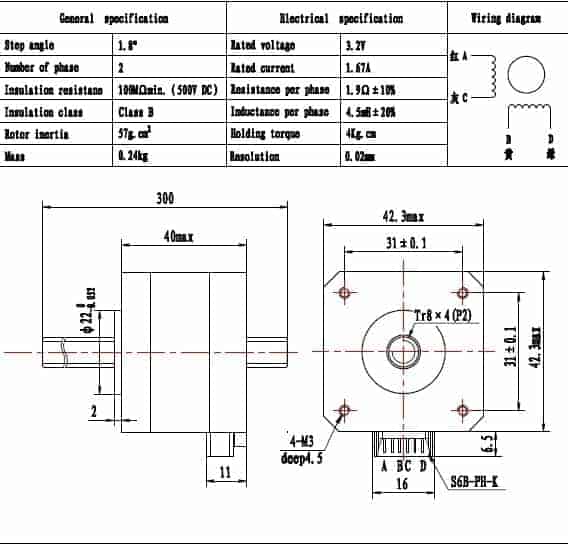

17HS3001-T84
Rated Current: 1.67A
Holding Torque: 0.4N.m
Leadscrew: Tr8x4 300mm or 400mm long

Tr8*4 lead screw and a 1.8 degree stepper motor 200 steps per revolution, the resolution is 0.02mm
A stepper driver 16th micro-stepping to drive, then the resolution will be 0.00125mm

The wiring colours are A Red C Grey B Yellow D Green

What you will receive:

1 x Nema17 Captive Stepper Motor & Cable (Select Length)
