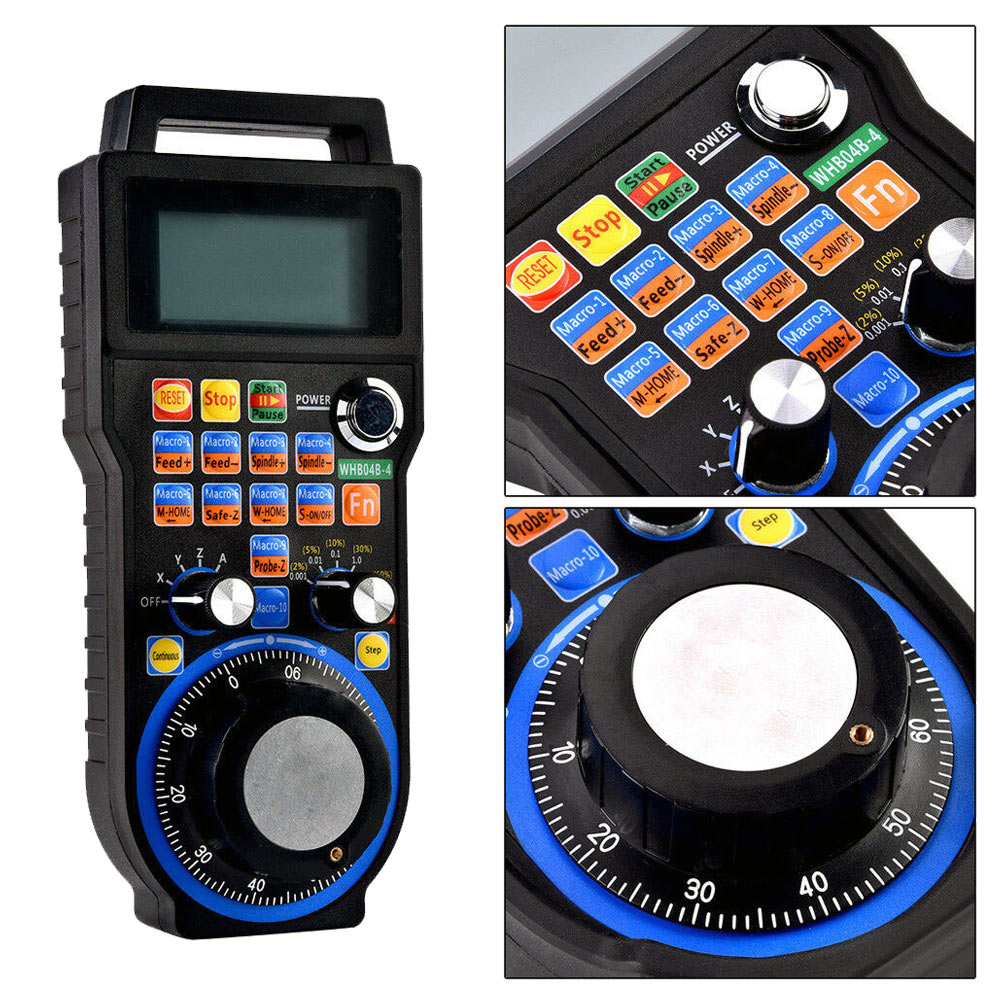

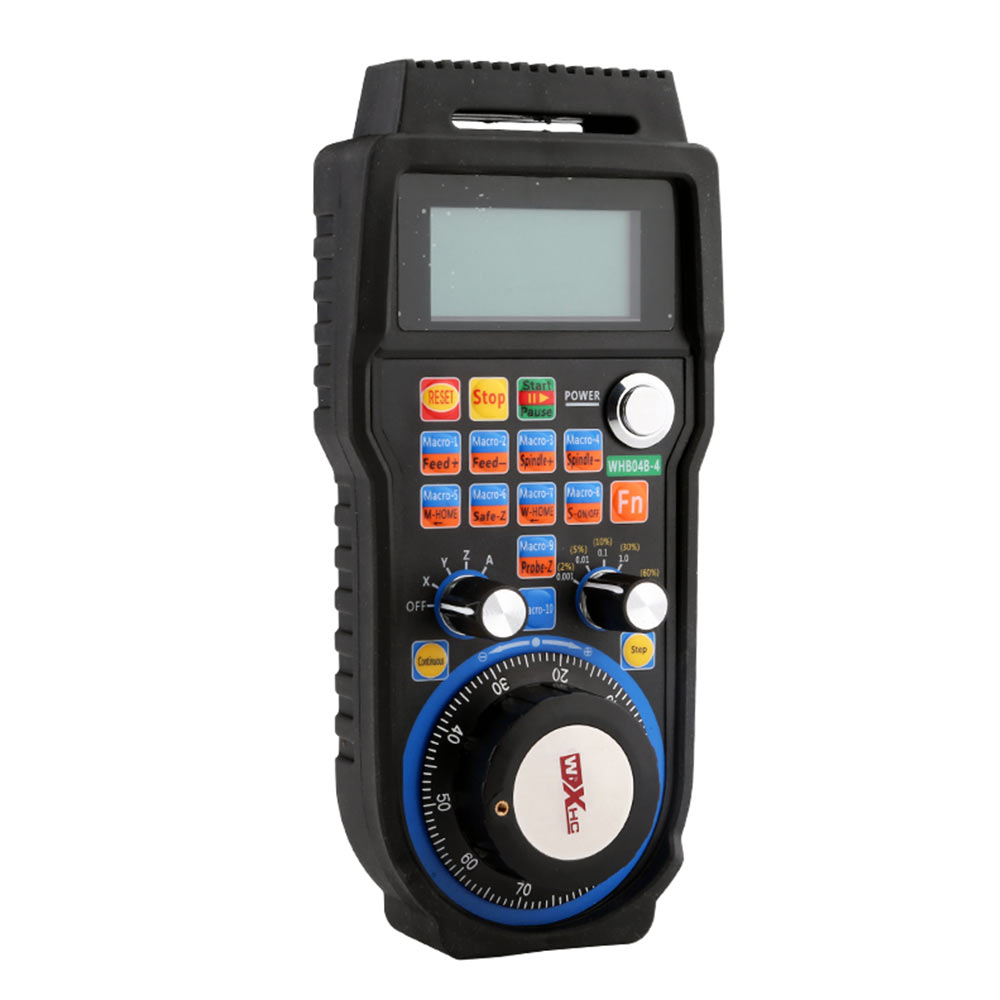

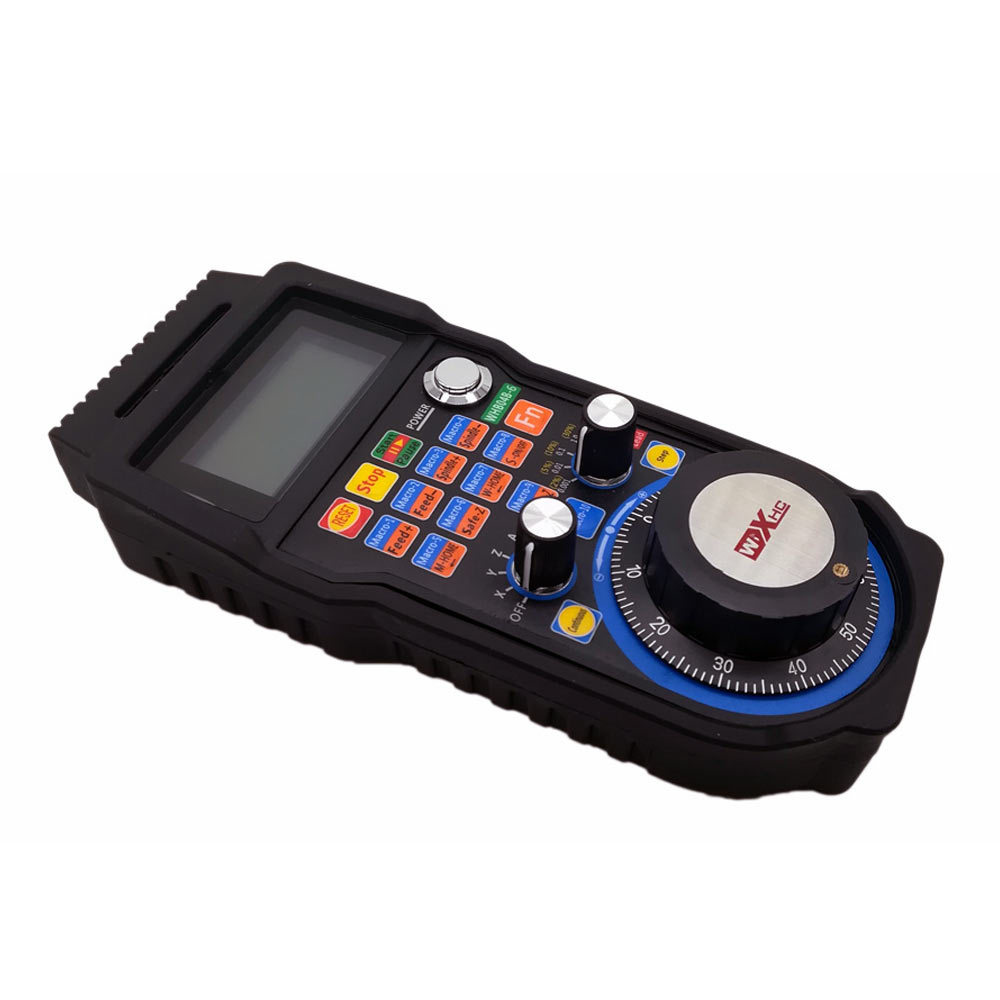

        MACH3 4 Axis Wireless Electronic Handwheel Manual Controller MPG USB Handle

        £124.99

        Out of stock

        SKU: ELE-COM-098 Category: Components and Sensors Tags: 4 Axis, Electronic Handwheel, Mach3, Manual Controller, MPG, USB Handle, WHB04B-4, Wireless
        Product Categories
        • 3D Printer
          • Controllers
          • Filament
          • Kits
          • Parts & Accessories
        • Arduino
          • Boards
          • Kits
          • Shields and Accessories
        • Cooling
          • Fan Guards
          • Fans
          • Heatsinks
        • Drone
        • Drones and More
          • Accessories
          • Antennas
          • Components
          • Drones
          • Kits
        • Electronics
          • Access Control
          • Cable
          • Components and Sensors
          • DIY Kits
        • LED Lighting
          • Accessories
          • Beads
          • Bulbs
          • Controllers
          • DMX
          • Downlights
          • Panel
          • Strips
        • Mechanical
          • Bearing
          • Bearings
            • Ball
            • Bushings
            • Flange
            • Grooved
            • Linear
            • Miniature
            • Needle
            • Self Aligning
            • Self Lube
            • Taper Roller
          • Fluid Transfer
          • Magnets
          • Mounts and Supports
          • Pulleys and Coupler
          • Rails and Carriage
          • Rods
          • Rods and Carriages
          • Timing Belt
        • Microcontrollers
        • Miscellaneous
        • Motors
          • Accessories
          • Coreless
          • DC Motors
          • Drivers
          • Spindle
          • Step
        • Other
        • Power Supply
        • Raspberry Pi
          • Boards and Kits
          • Shields and Accessories
        • Robotics
          • Components
          • Kits
        • Uncategorised
        • Virtual Reality
        • Description
        • Additional information

        Description:

        • Wireless operation, to bring you convenience and practicality of the operation.
        • 15 meter wireless transmission distance, stable and reliable data transmission
        • It max support 4 axis. the 4th axis- A axis, no A=0 function ( A axis functions are not as much as the other 3 axis)
        • All the buttons can be programmable
        • About the hand wheel, you move slow, the machine runs slow; also you move fast, the machine runs fast.
        • Rich real-time display of large screen LCD:
        • Display include: machine status, run, pause, idle, step value
        • Display X y Z axis workplace coordinate and x y z axis machine coordinate
        • Show the feed rate spindle speed
        • Band switch for easy operation:
        • Switching X-axis coordinate regulation
        • Switching y-axis coordinate regulation
        • Switching z-axis coordinate regulation
        • Switch hand wheel guide
        • Feed adjustment switch
        • Speed control switch
        • WHB04B-4 Support 4 axis with x,y,z,a application on mach3 cnc system in windows platform.

        How to Config this wireless MPG pendant?

        http://wiki.linuxcnc.org/cgi-bin/wiki.pl?Using_A_XHC-HB04_Wireless_MPG_Pendant

        New version WHB04B has 2 series:
        1、 WHB04B-4:support 4 axis with x,y,z,a
        2、 WHB04B-6:support 6 axis with x,y,z,a,b,c
        application on mach3 cnc system in windows platform.

        Auto Frequency Hopping When Noise

        • Frequency band:433Mhz,ISM ,the output power up to10DB,High receiver sensitivity -98DB.
        • 32 hopping channels,the channel frequency gap is 1Mhz.
        • the transmission is encrypted, auto build communication network and pair. auto hopping when noise.
        • 32 sets of wireless MPG could be used at the same time in one room.

        LCD Display

        • Display the X Y Z A B C axis work and machine coordinate data.
        • Display the spindle and feed speed.
        • The lcd display data with background light.

        Axis/Step Band Switch

        To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.

        Support 10 macro function button

        • Frequency bands ISM,433MHZ
        • Supply voltage 2 AA batteries
        • Wireless transmission distance 40 meters
        • MPG Encoder 100PPR
        • Function Key 16 Keys(support 10 macro function button)
        • Output power 10DB
        • Receiver sensitivity -98DB
        • Support axis 4 or 6 axis
        • LCD Dot LCD with background light
        • Material The material is ABS and PC with anti-impact and heat-resistant.
        • With protected Silicone coat

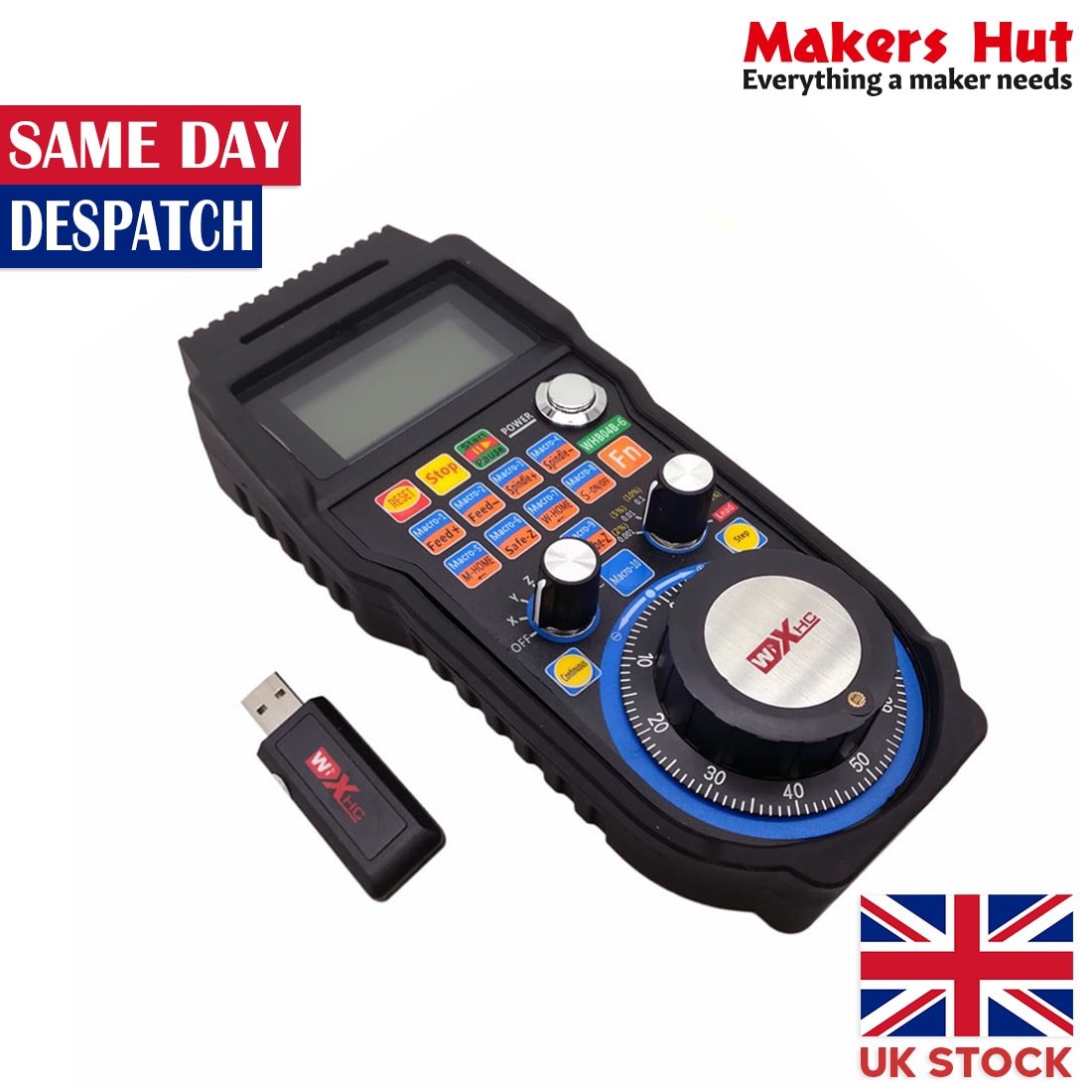

        What you will receive:

        1 x Wireless USB Receiver
        1 x CNC Wireless Remote Handle

        Weight600 g
