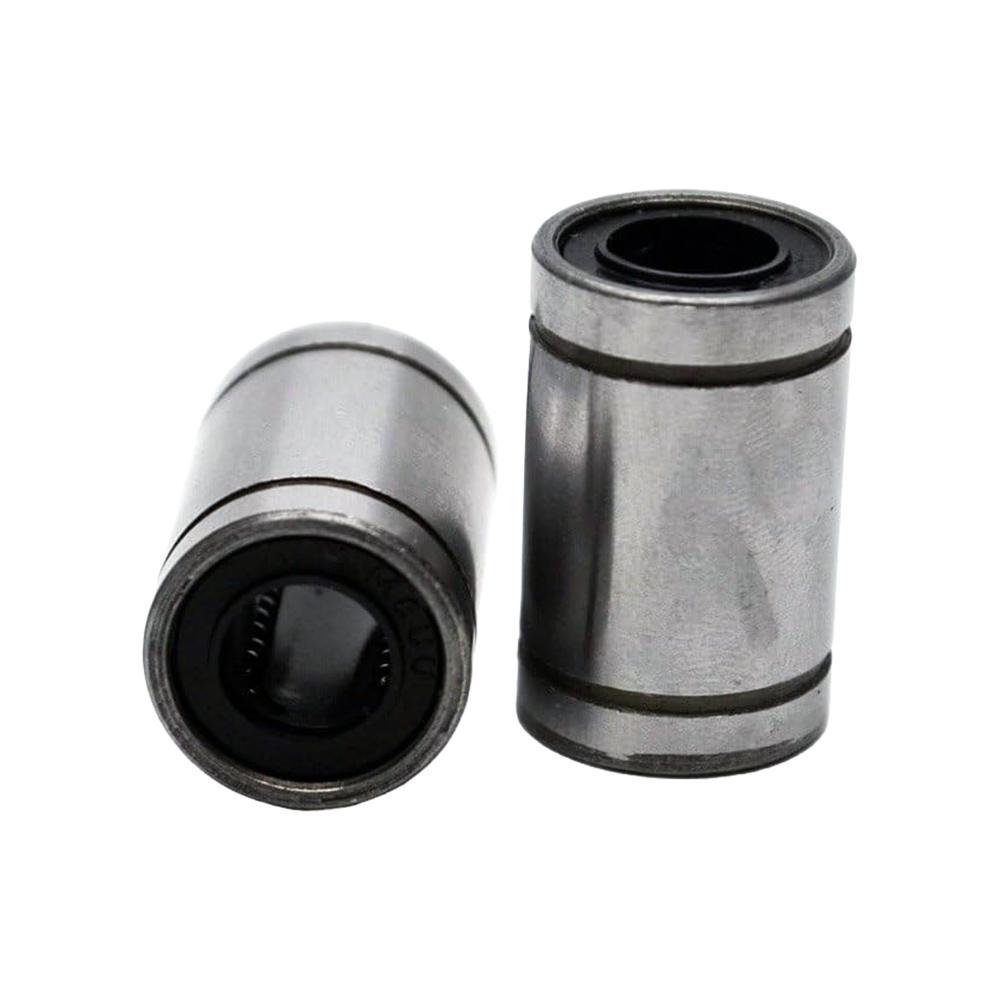

LM6UU Linear Bearings Size 6x12x19mm 3D Printer CNC RepRap

£1.88 – £12.34

Clear
LM6UU Linear Bearings Size 6x12x19mm 3D Printer CNC RepRap
SKU: MEC-BEA-007 Category: Linear Tags: 3D Printer, cnc, Linear Bearings, reprap
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

LM Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture.

Closed: LM Closed types – the outer raceway is solid with no relief machined so clearances are preset, choose the adjustable type if you need to control clearances.

Benefits: Low friction, low maintenance, rubber seal limits moisture and dirt ingress, cost effective solution

Specifications:

Inside Diameter dr: 6mm Tol 0 to – 6µm
Outside Diameter D: 12mm Tol 0 to – 10µm
Length L: 19mm Tol 0 to – 200µm
W :1.1mm
D1: 11.5mm
Eccentricity: 8µm
Dynamic Load C: 11 kgf
Static Load Co: 19 kgf
Weight: 8g
B: 13.5mm Tol 0 to – 200µm
Number of ball rows: 3

What you will receive:

LM6UU Bearing, Please Select Quantity

Qty

1, 2, 4, 8
