Description:
Female Thread
Note
IGUBAL® bearings are designed to run with a clearance between the shaft and the inside diameter of the ball, to prevent the ball turning in the housing.
Rod End & Spherical – Maintenance Free IGUS®
IGUBAL® spherical bearings are self-lubricating, designed to run dry and are maintenance free
The bearings are extremely tolerant to dirt and dust – IGUBAL® can be used in abrasive environments
8 to 20mm bore size
Low weight (20% of equivalent steel)
High rigidity
Corrosion and chemically resistant
High fatigue strength under changing loads
Working temperature range: -30°C to 80°C

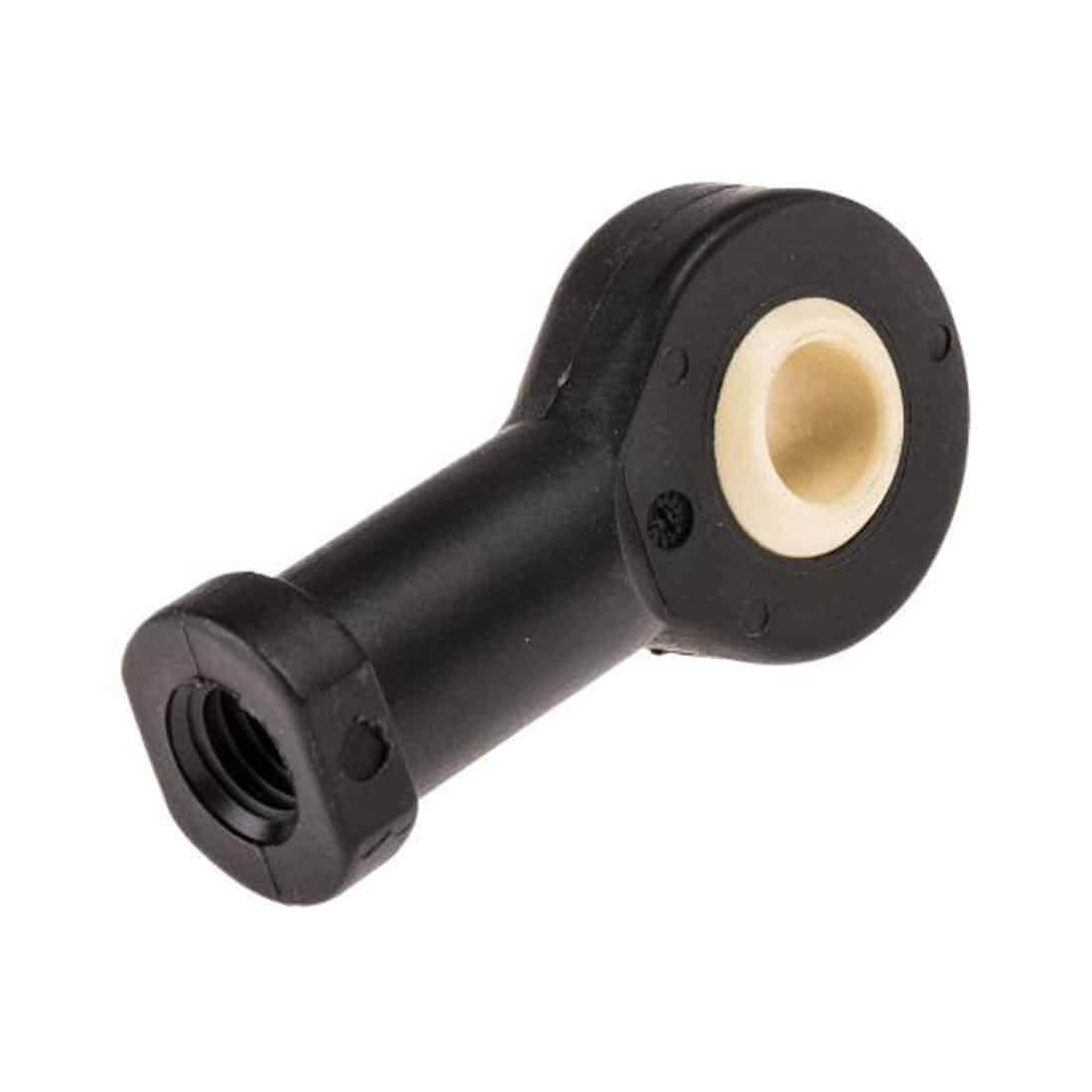

KBRM-08 Specifications:
Connection Size: M8 Female
Bore Size: 8mm
Static Load Rating: 1050N
Overall Length: 48mm
Material: Igumid G
Connection Thread Size: M8
Connection Thread Standard: Metric
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -30°C
Connection Gender: Female
KBRM-10 Specifications
Connection Size: M10 Female
Bore Size: 10mm
Static Load Rating: 1550N
Overall Length: 58mm
Material: Igumid G
Connection Thread Size: M10
Connection Thread: Standard Metric
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -30°C
Connection Gender: Female
KBRM-12 Specifications
Connection Size: M12 Female
Bore Size: 12mm
Static Load Rating: 1800N
Overall Length: 62mm
Material: Igumid G
Connection Thread Size: M12
Connection Thread: Standard Metric
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -30°C
Connection Gender: Female
What you will receive
1 x Rod end as per selection
