Description:
BigTreetech SKR Pro V1.2 Board WIFI and TFT35 Touch Screen Kits With 6PCS TFT TMC2130 SPI
SKR Pro V1.1 Control Board:
Descriptions:
This is the upgraded version of the BIGTREETECH SKR V1.3 Control Board

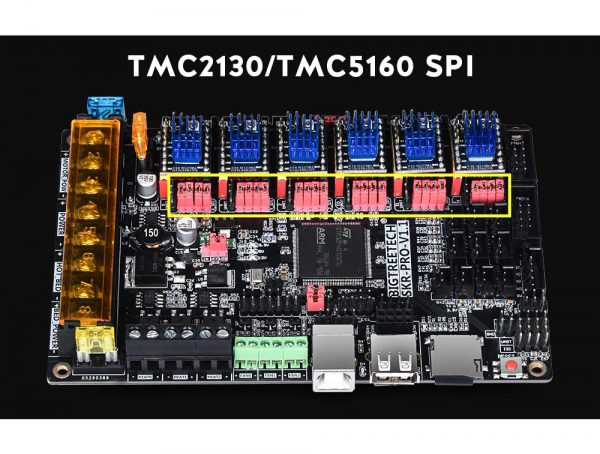

TMC2130 SPI – only with 5pcs cable, SKR PRO has onboard SPI function,so TMC2130 SPI don’t need to use cable on SKR PRO.
About firmware:
At present, the firmware disclosed on GitHub website is actually the marlin2.0 firmware.
You can use the firmware that we have disclosed before the merger.
After the merger is completed, you can download the firmware from the official website of Marlin.

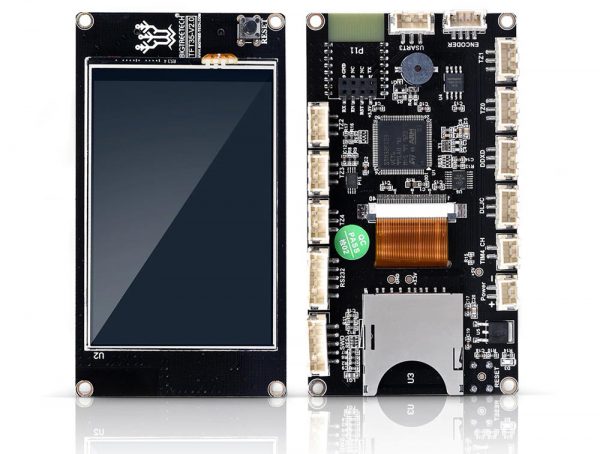

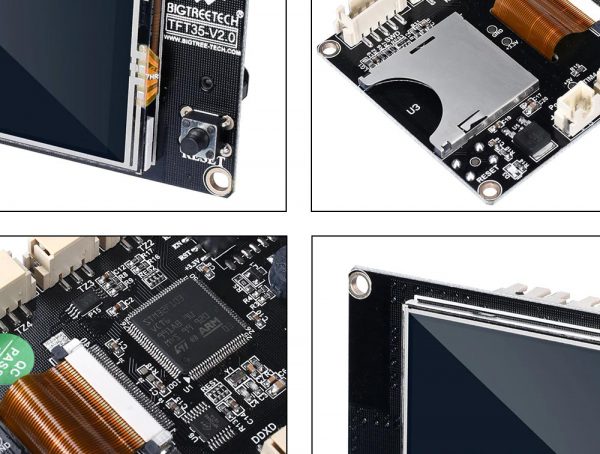

TFT35 V2.0 Touch Screen:
ARM Cortex-M3 series STM32F103VCT6 chip with 32 – bit CPU 72MHz;
Integrate Keil MDK5 development environment with mainstream development tools; Support online debugging, more helpful for product development and performance optimization, C language development, low development threshold;
Update and configure firmware with SD card

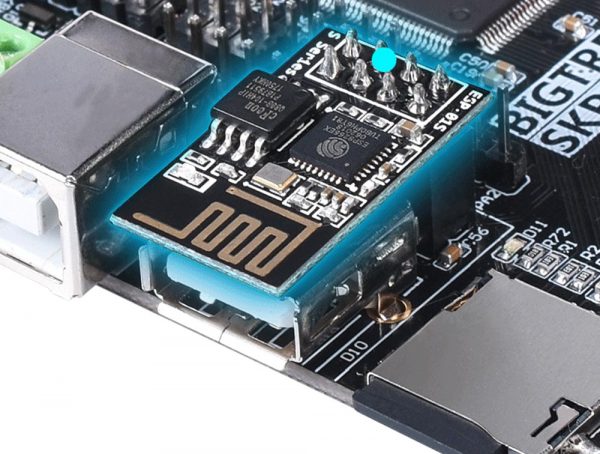

Support serial wifi
Support the functions of power off, continuous play, material failure detection, shutdown, etc.
About A4988 Driver:
Simple step and direction control interface;
Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step;
Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated;
Voltage to achieve higher step rates;
3.3 and 5 V compatible logic supply
Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay);
Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection;
Short-to-ground and shorted-load protection.
Microprocessor: ARM 32-bit Cortexm-M4 CPU

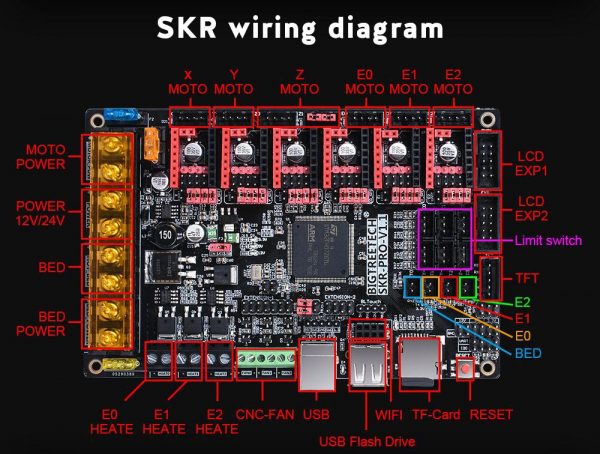

Motor drive interface: X, Y, Z, ES, El, E2
Support file format: G-code
Display: 2.8 “TFT, 3.5” TFT, LCD2004, LCD12864
Supported Machine Architecture: XYZ, Delta, Kossel, Ultimaker, Corexy
Recommended Software: Cura, Simplify3D, pronterface, Repetier-host, Makerware
Expand the Interface Function Support: WIFI,Resume Printing While Power Off,Filament Break Detection,Automatic Shutdown After Printing, Automatic leveling, BL Touch

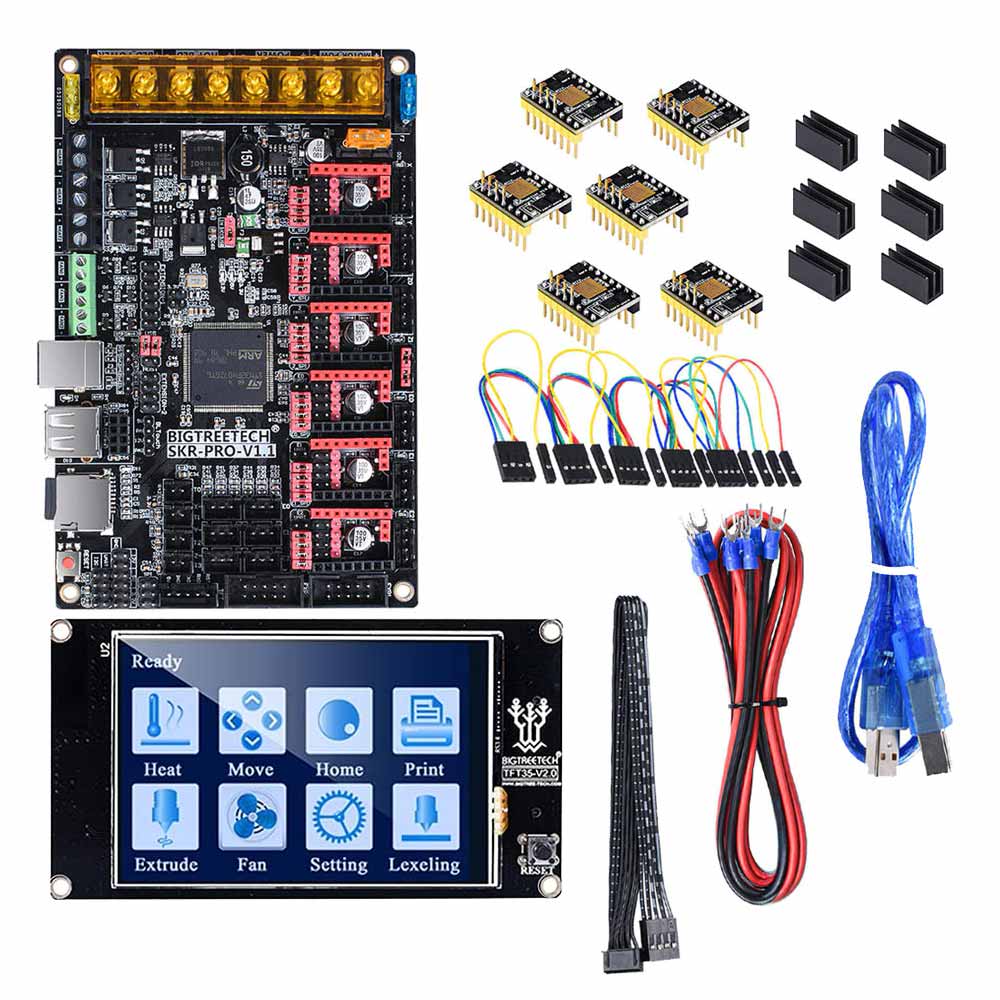

What you will receive:
1pcs x SKR PRO V1.2 (With cables)
1pcs x TFT35 V2.0 (With cable)
6pcs x TMC driver
