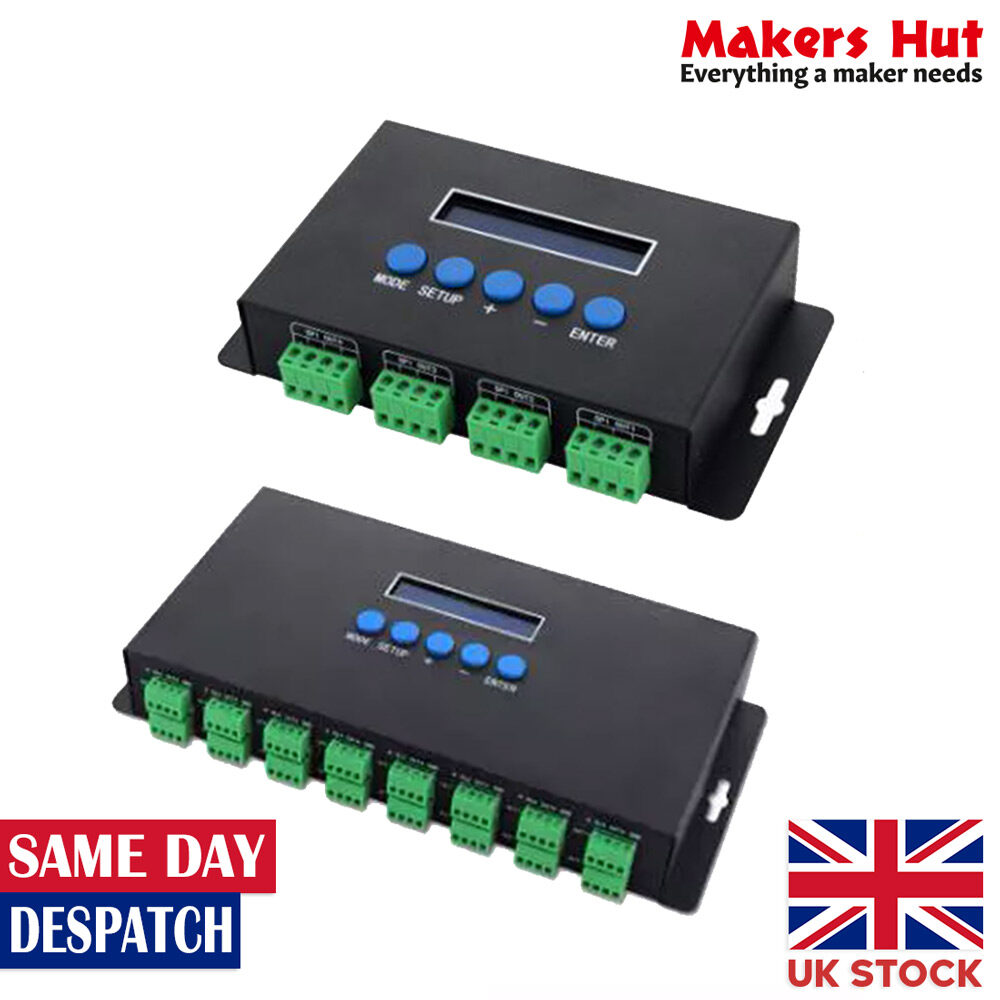

BC-216 /BC-204 Led Controller Artnet to SPI /DMX Pixel Light Controller

Description:

BC-204 BC-216 DC5V-24V Artnet Eternet to SPI/DMX pixel led light controller Output 4 channels 16 channels For 2811 2812 2801

BC-204 is dedicated to converting the Ethernet signal into SPI pixel signal, which is designed for large project with high-density pixel light, such as matrix panel lights, construction’s contour lamp, etc. Besides converting Ethernet-based control protocols into various LED driving IC signal, it also outputs DMX512 signal at the same time, convenient for the connection of different types of led lamp, and to achieve the unified control of all kinds of led lamp in the same project.

Specifications:

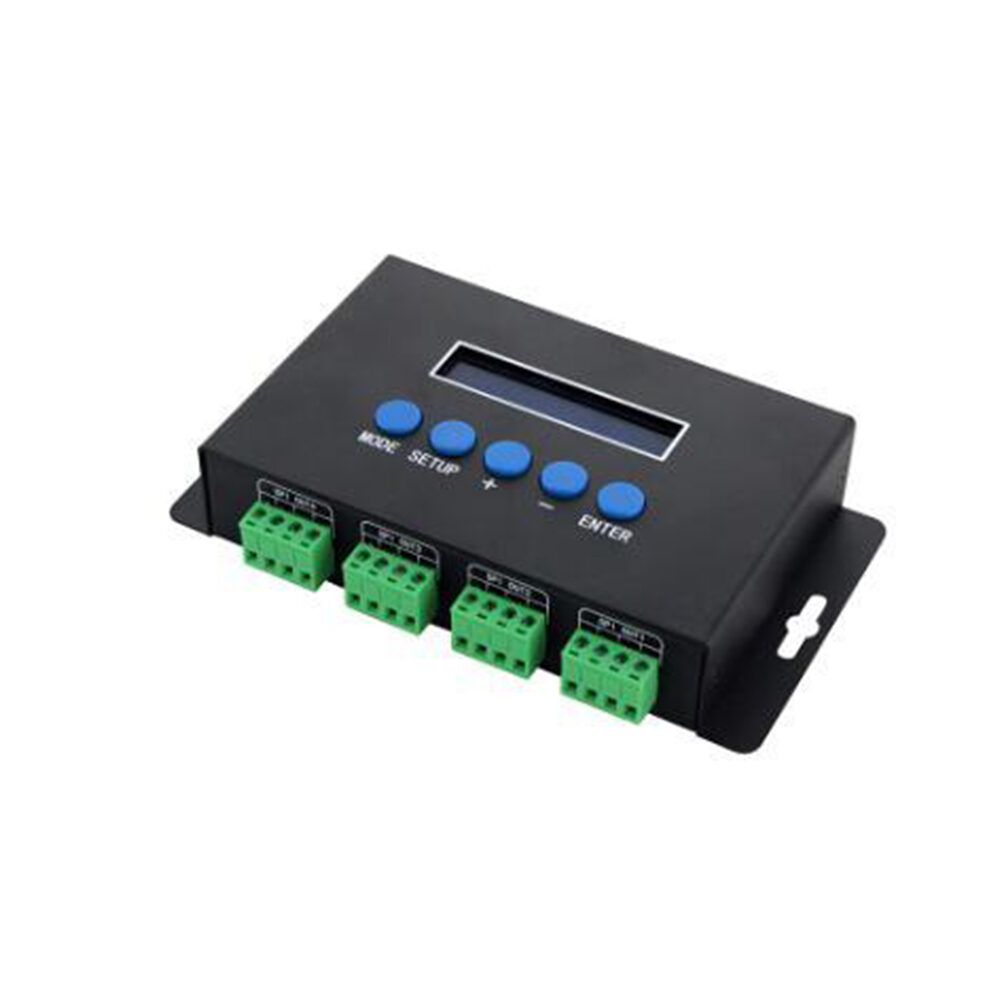

Model: BC-204
Working Voltage : DC5-DC24V
Output Current: 7A X 4CH(Built-in 7.5A fuse)
Input Ethernet control protocol : ArtNet
Output Control IC: 2811/2801/6803/3001/8806/APA102/9813/TM1814/SK6812 Series
Control Pixels : RGB:680 Pixels X4CH RGBW:512 Pixels X4CH
Output DMX512: One port(1X512 Channels)
Working Temp: -20~55℃
Product Dimension : L166×W110×H31(mm)
Weight(G.W) : 510g

Basic Features:

1. With LCD display and built-in WEB SERVER setting interface, easy operation.
2. Support Ethernet DMX protocol ArtNet, can be expanded to other protocols.
3. Multi SPI (TTL) signal output, up to 5440 pixels control.
4. Output DMX512 signal at the same time, convenient for the connection of different types led lamp.
5. Support various LED driving IC, flexible control.
6. Support online firmware upgrade.
7. Adopt DIP plug-in design for the easily-worn parts, Users can repair the damage caused by wrong wiring or short circuit.
8. Built-in test mode, using a network interface with indicator light, work status is clear when at a glance.

Specifications:

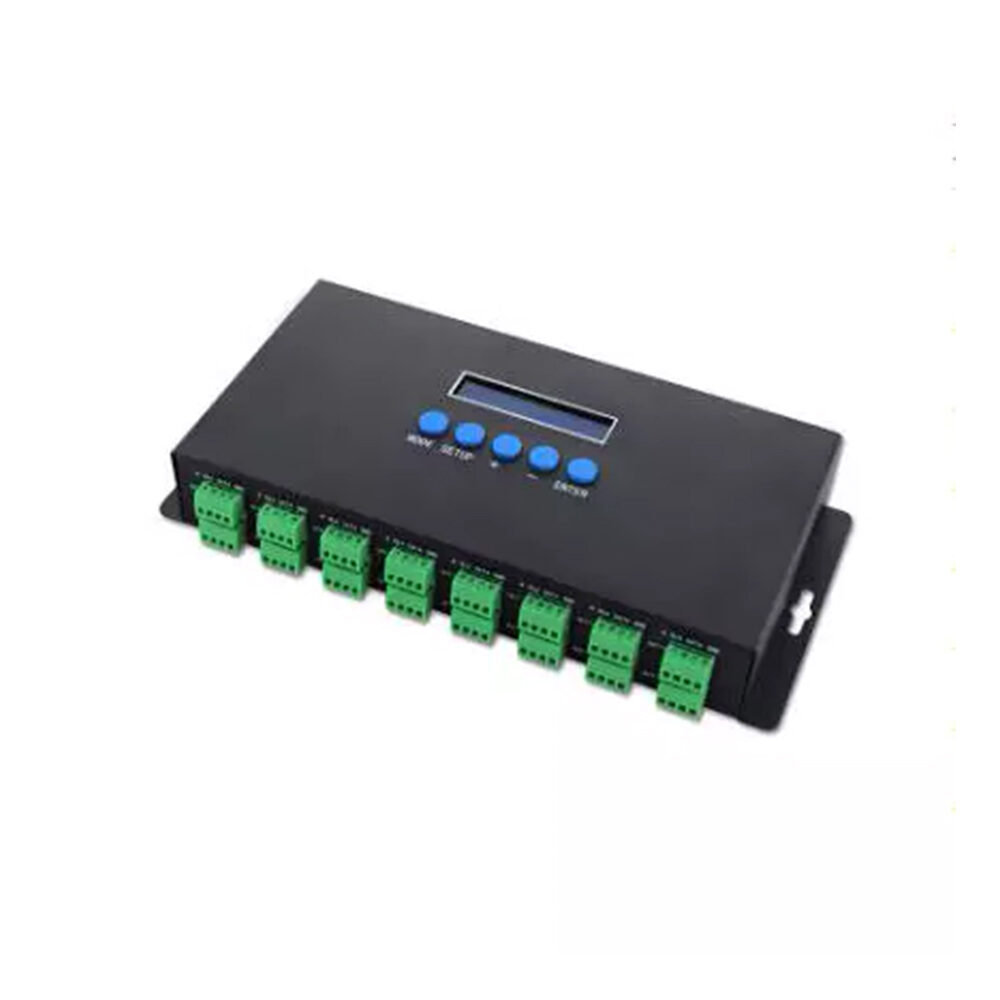

Model: BC-216
Working Voltage: DC5-DC24V
Output Current: 3A X 16CH(Built-in 5A fuse)
Input Ethernet control protocol: ArtNet
Output Control IC: 2811/2801/6803/3001/8806/APA102/9813/TM1814/SK6812 Series
Control Pixels: RGB:340 Pixels X16CH RGBW:256 Pixels X16CH
Output DMX512: Two port(2X512 Channels)
Working Temp: -20~55℃
Product Dimension: L258×W145×H41(mm)
Weight(G.W): 1100g

This Ethernet-SPI/DMX pixel light controller is dedicated to converting the Ethernet signal into SPI pixel signal, which is designed for large project with high-density pixel light, such as matrix panel lights, construction’s contour lamp, etc. Besides converting Ethernet-based control protocols into various LED driving IC signal, it also outputs DMX512 signal at the same time, convenient for the connection of different types of led lamp, and to achieve the unified control of all kinds of led lamp in the same project.

What you will receive:

1 x Led Controller Artnet (Please Choose Model)
