Adafruit ADA259 USB LiIon/LiPoly Charger – v1.2

£28.99

10 in stock

Adafruit ADA259 USB LiIon/LiPoly Charger – v1.2

£28.99

SKU: ELE-COM-046 Category: Components and Sensors Tags: ADA259, adafruit, USB LiIon/LiPoly Charger
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

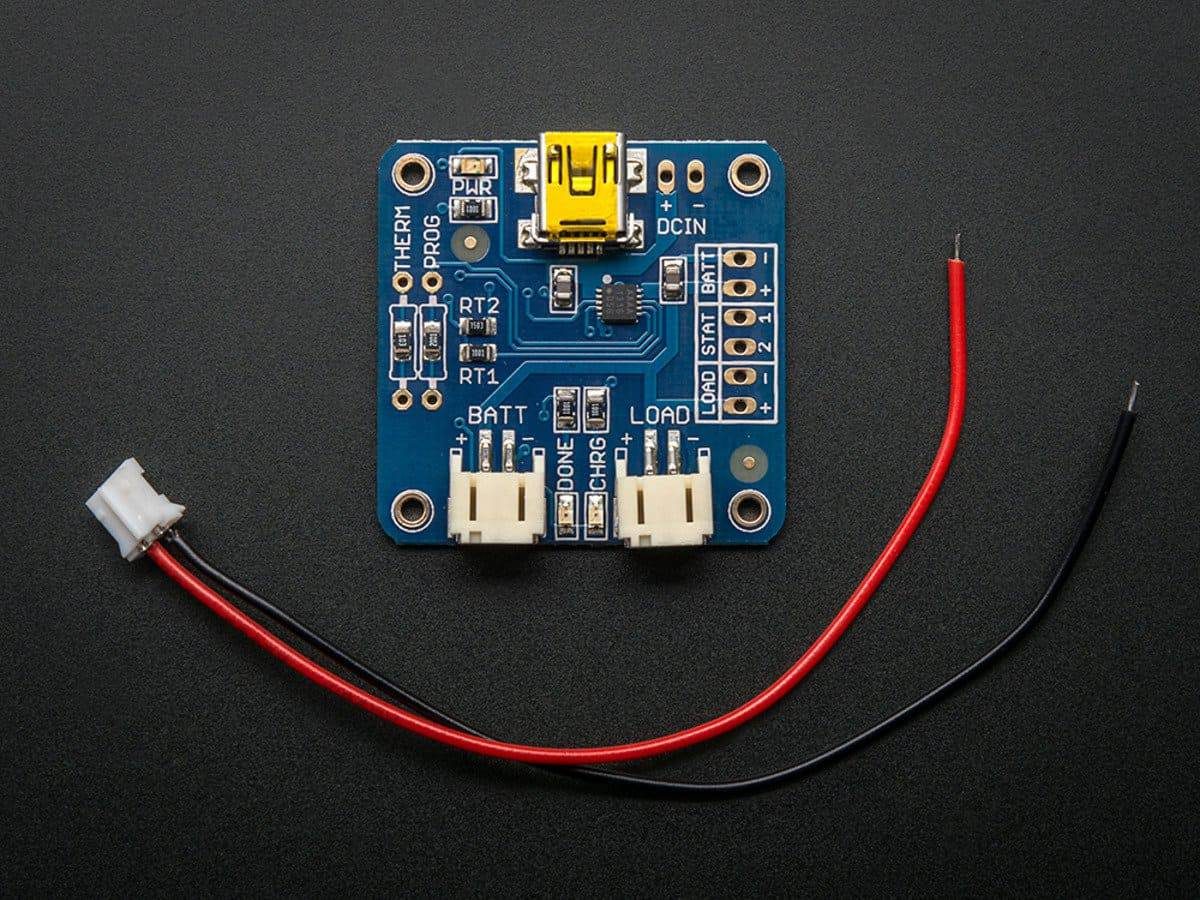

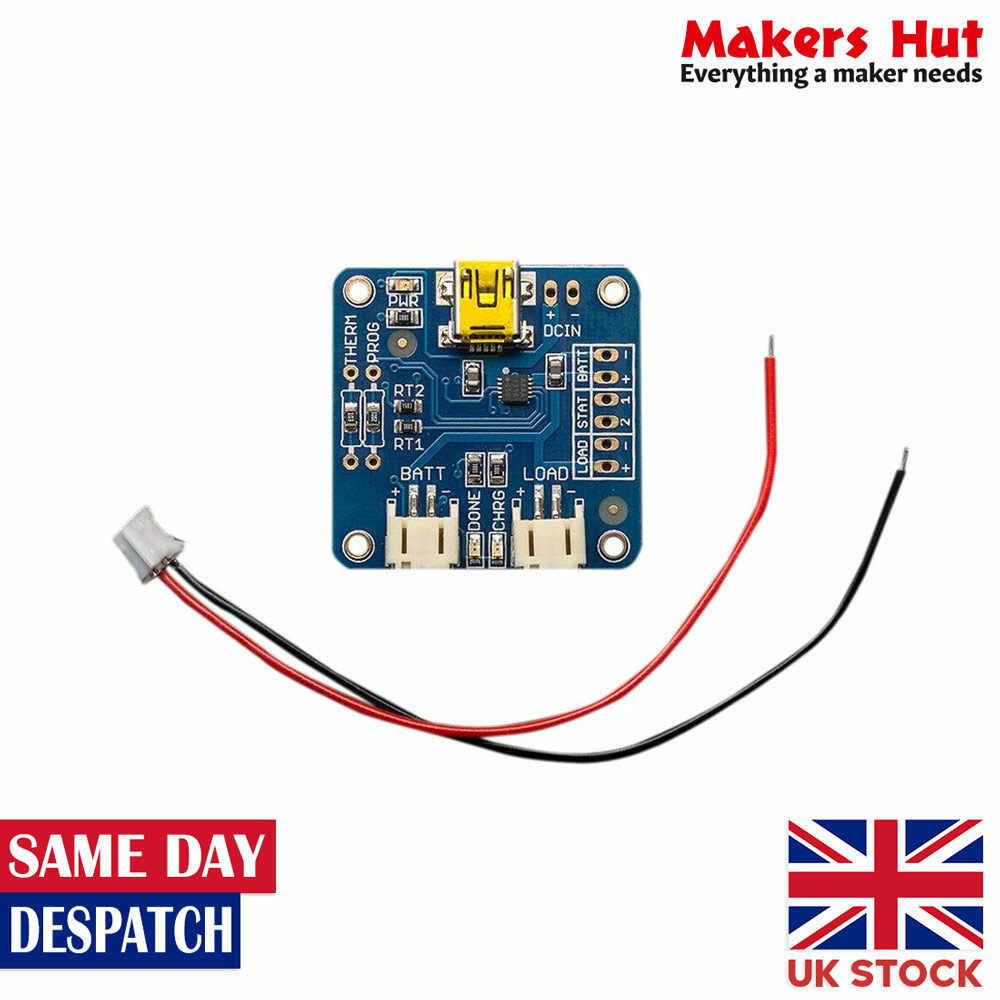

This is a Lithium Ion and Lithium Polymer battery charger based on the MCP73833. It uses a USB mini-B for connection to any computer or ‘USB wall adapter’. Charging is performed in three stages: first a preconditioning charge, then a constant-current fast charge and finally a constant-voltage trickle charge to keep the battery topped-up. The fast-charge current is 500mA by default, but is easily adjustable from 100mA up to 1000mA by soldering a through-hole resistor on-board.

This board is great for DIY projects because it has 3 indicator LEDs – one for power, one for charging status and a third that indicates when charging is complete. Keep the battery connected to the charger and pass power through the additional JST connector using the included cable!

For use with Adafruit Lipoly batteries only! Other batteries may have different voltage, chemistry, polarity or pinout.

Comes assembled and tested, includes a JST cable!
5V input via mini-B USB connector
For charging single Lithium Ion/Lithium Polymer 3.7/4.2v batteries (not for older 3.6/4.1v cells)

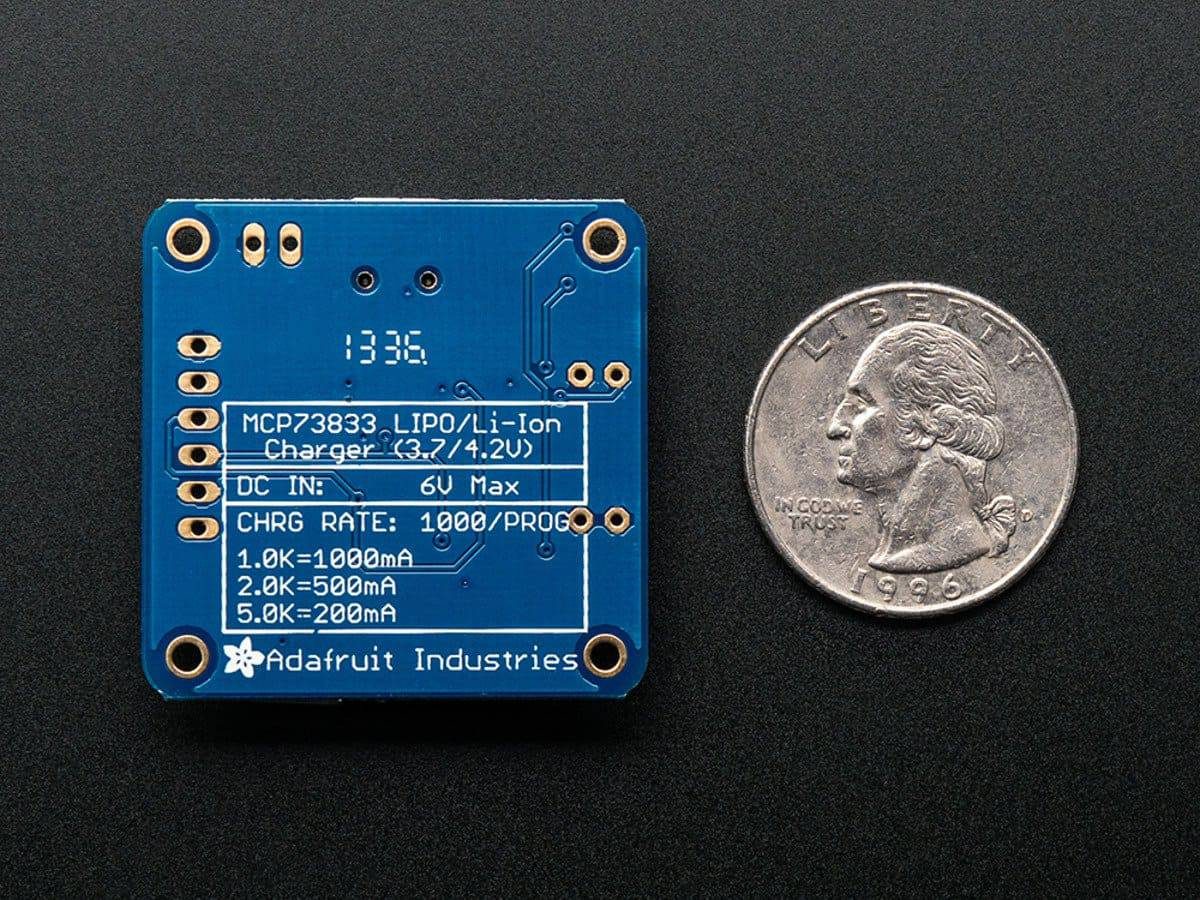

500mA charge current, adjustable from 100mA to 1000mA by soldering in a resistor

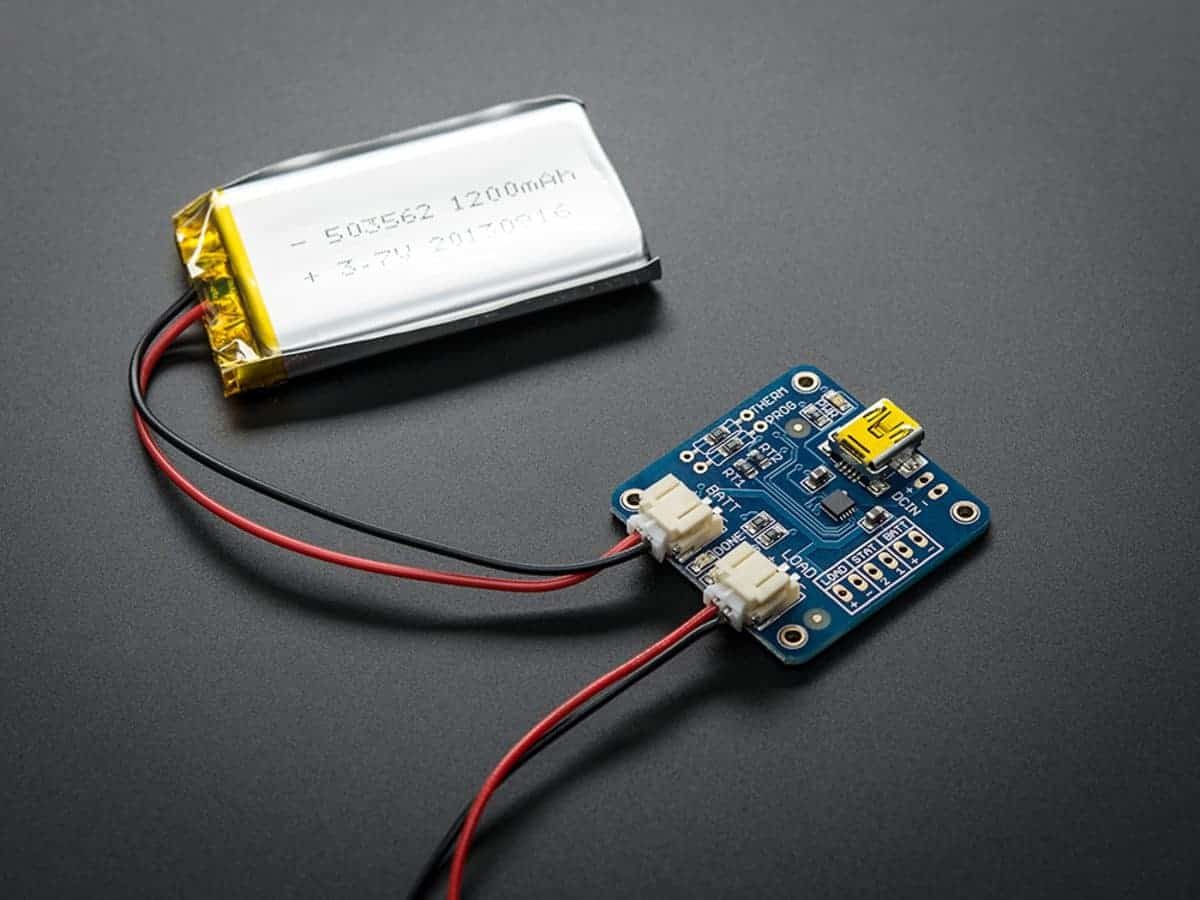

Separate JST connectors for battery and load system so batteries don’t have to be removed for charging
Chip supports a 10K NTC thermistor which we have stuffed as a plain 10K. For people who require temperature monitors (using high charge rates), remove the 10K and solder in the thermistor in its place
0.1″ (2.54mm) breakouts for the battery, DC, and status LEDs
Free 2-pin JST cable included!
Batteries and USB cable not included.

Technical Details:

  • MCP73833 Datasheet
  • EagleCAD PCB files on GitHub
  • Fritzing library

Specification:

Dimensions: 33mm x 35mm x 7mm (1.3in x 1.4in x 0.3in)
Weight: 5.7g ( 0.2oz)
Read our tutorial all about Lithium Ion/Polymer batteries for more details!

What you will receive:

1 x Adafruit ADA259 USB LiIon/LiPoly Charger – v1.2

Weight 7 g

Related products

Quick View

Components and Sensors

TTP223B Digital Touch Sensor Capacitive Touch Switch Module for Arduino

£2.19
ESP8266 ESP-07 WIFI Transceiver Wireless Module with onboard antenna ARDUINO IDE
Quick View

Components and Sensors

ESP8266 ESP-07 WIFI Transceiver Wireless Module with onboard antenna ARDUINO IDE

£4.49
Quick View

Components and Sensors

ESP8266 NodeMcu Lua WIFI V3 Development Board CP2102 Node Mcu

£4.99
Quick View

Components and Sensors

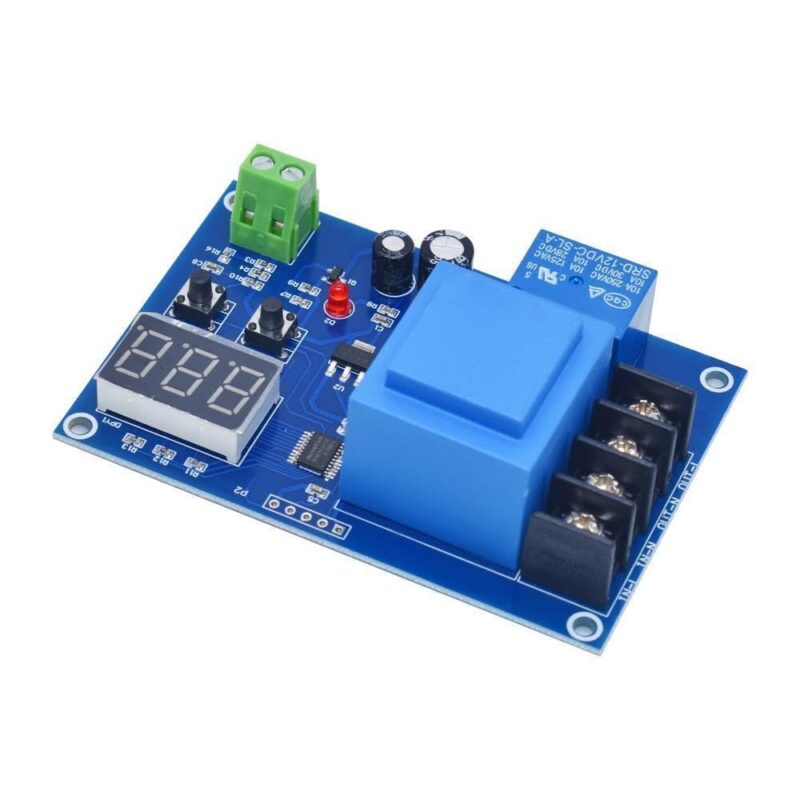

XH-M602 NC 3.7-120V 12V Lithium Battery Charger Control Charging Protection Board
