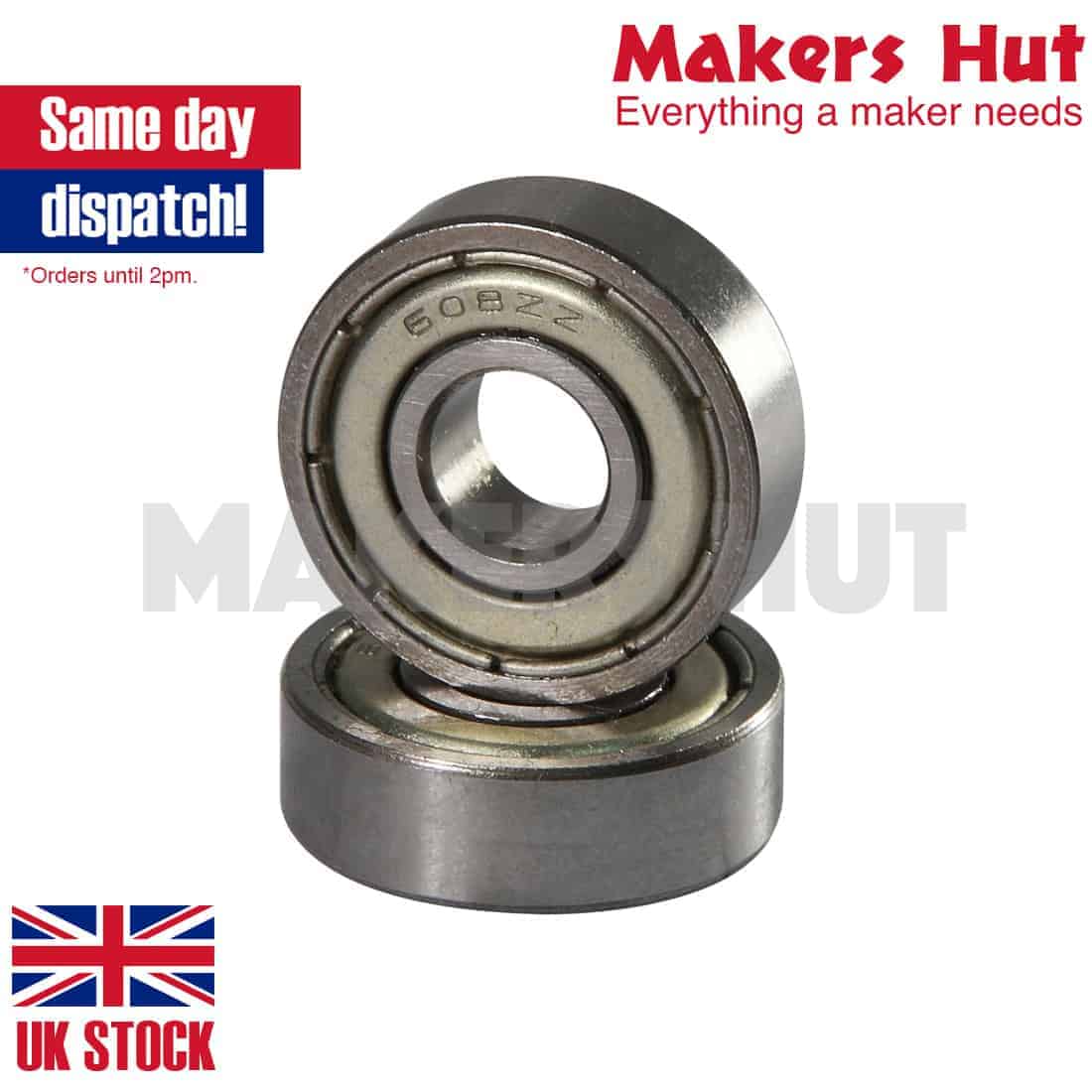

        ABEC-7 608ZZ 8mm x 22mm x 7mm Shielded Deep Groove Ball Bearing
        Home / Mechanical / Bearings / Ball

        608ZZ 8mm x 22mm x 7mm Shielded Deep Groove Ball Bearing – 608 Fidget

        £1.99 – £7.49

        Clear
        ABEC-7 608ZZ 8mm x 22mm x 7mm Shielded Deep Groove Ball Bearing
        608ZZ 8mm x 22mm x 7mm Shielded Deep Groove Ball Bearing – 608 Fidget
        SKU: MEC-BEA-006 Category: Ball Tags: 608 Fidget, 608zz, 8mm x 22mm x 7mm, ball bearing, Shielded Deep Groove
        Product Categories
        • 3D Printer
          • Controllers
          • Filament
          • Kits
          • Parts & Accessories
        • Arduino
          • Boards
          • Kits
          • Shields and Accessories
        • Cooling
          • Fan Guards
          • Fans
          • Heatsinks
        • Drone
        • Drones and More
          • Accessories
          • Antennas
          • Components
          • Drones
          • Kits
        • Electronics
          • Access Control
          • Cable
          • Components and Sensors
          • DIY Kits
        • LED Lighting
          • Accessories
          • Beads
          • Bulbs
          • Controllers
          • DMX
          • Downlights
          • Panel
          • Strips
        • Mechanical
          • Bearing
          • Bearings
            • Ball
            • Bushings
            • Flange
            • Grooved
            • Linear
            • Miniature
            • Needle
            • Self Aligning
            • Self Lube
            • Taper Roller
          • Fluid Transfer
          • Magnets
          • Mounts and Supports
          • Pulleys and Coupler
          • Rails and Carriage
          • Rods
          • Rods and Carriages
          • Timing Belt
        • Microcontrollers
        • Miscellaneous
        • Motors
          • Accessories
          • Coreless
          • DC Motors
          • Drivers
          • Spindle
          • Step
        • Other
        • Power Supply
        • Raspberry Pi
          • Boards and Kits
          • Shields and Accessories
        • Robotics
          • Components
          • Kits
        • Uncategorised
        • Virtual Reality
        • Description
        • Additional information

        Description:

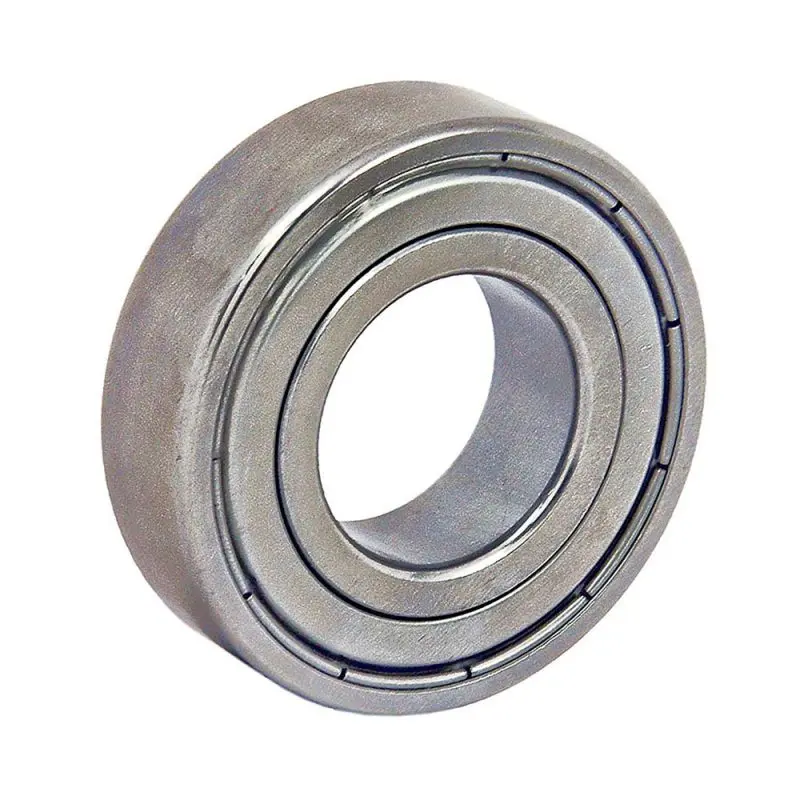

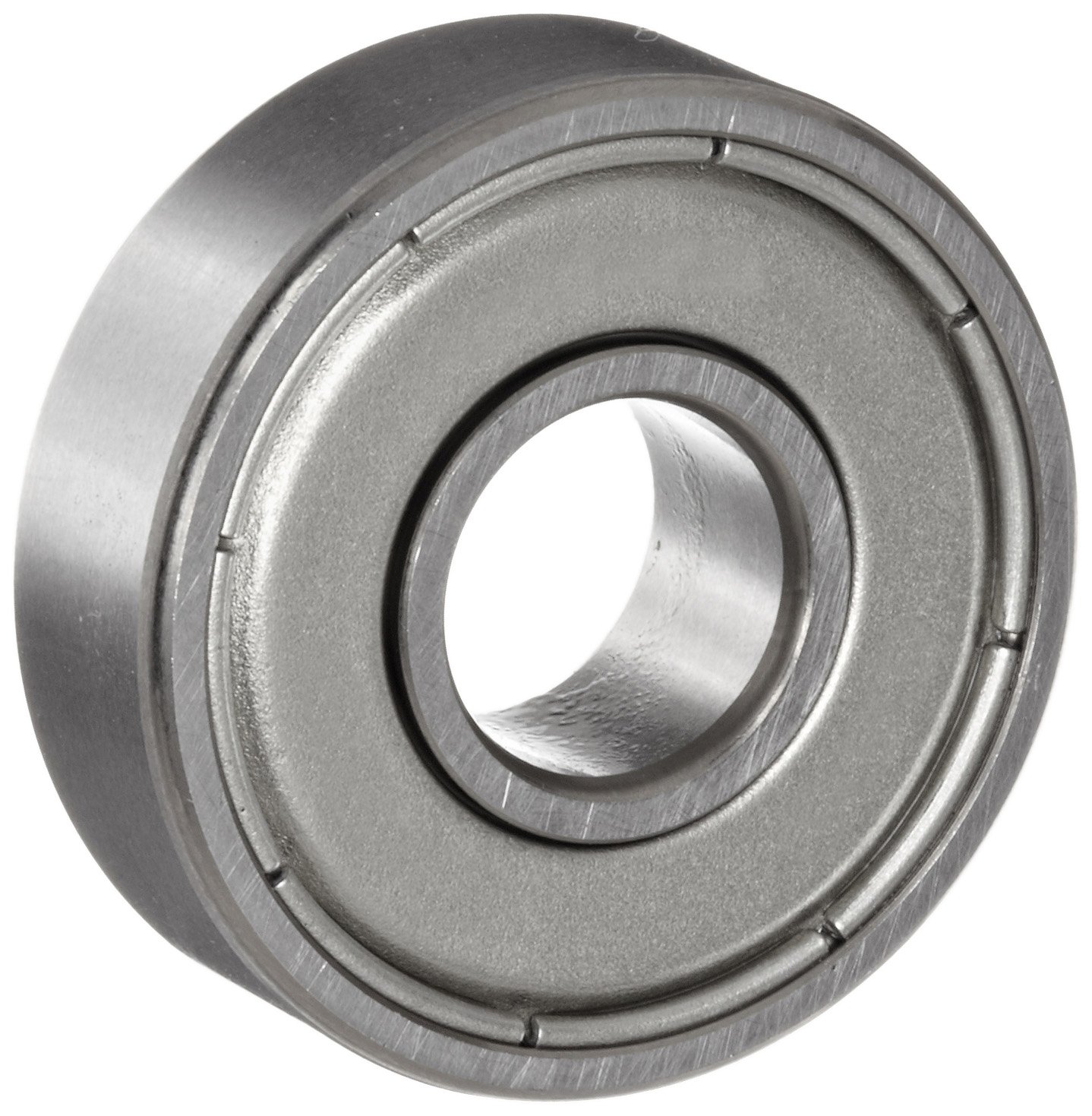

        Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.

        Shields can be easily removed for applications that only require 1 shield

        Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost effective solution

        Specification:

        d = 8
        D = 22
        B = 7
        r min = 0.3
        r1 min = 0.3

        Dynamic Load: 3.3 kN
        Static Load: 1.35 kN
        Speed in Oil: 34000 rpm
        Speed in Grease: 23000 rpm

        What you will receive:

        1 x Bearing

        WeightN/A
        Qty

        1, 2, 4, 5, 10
