300W 48V 52mm High Speed Spindle Motor 12000rpm er11 CNC Collet for DIY Engraving

    £67.99

    3 in stock

    300W 48V 52mm High Speed Spindle Motor 12000rpm er11 CNC Collet for DIY Engraving

    £67.99

    SKU: MOT-SPI-001 Category: Spindle Tags: cnc, Collet, DIY Engraving, High Speed Spindle Motor, Spindle Motor
      Product Categories
      • 3D Printer
        • Controllers
        • Filament
        • Kits
        • Parts & Accessories
      • Arduino
        • Boards
        • Kits
        • Shields and Accessories
      • Cooling
        • Fan Guards
        • Fans
        • Heatsinks
      • Drone
      • Drones and More
        • Accessories
        • Antennas
        • Components
        • Drones
        • Kits
      • Electronics
        • Access Control
        • Cable
        • Components and Sensors
        • DIY Kits
      • LED Lighting
        • Accessories
        • Beads
        • Bulbs
        • Controllers
        • DMX
        • Downlights
        • Panel
        • Strips
      • Mechanical
        • Bearing
        • Bearings
          • Ball
          • Bushings
          • Flange
          • Grooved
          • Linear
          • Miniature
          • Needle
          • Self Aligning
          • Self Lube
          • Taper Roller
        • Fluid Transfer
        • Magnets
        • Mounts and Supports
        • Pulleys and Coupler
        • Rails and Carriage
        • Rods
        • Rods and Carriages
        • Timing Belt
      • Microcontrollers
      • Miscellaneous
      • Motors
        • Accessories
        • Coreless
        • DC Motors
        • Drivers
        • Spindle
        • Step
      • Other
      • Power Supply
      • Raspberry Pi
        • Boards and Kits
        • Shields and Accessories
      • Robotics
        • Components
        • Kits
      • Uncategorised
      • Virtual Reality
      • Description

      Description

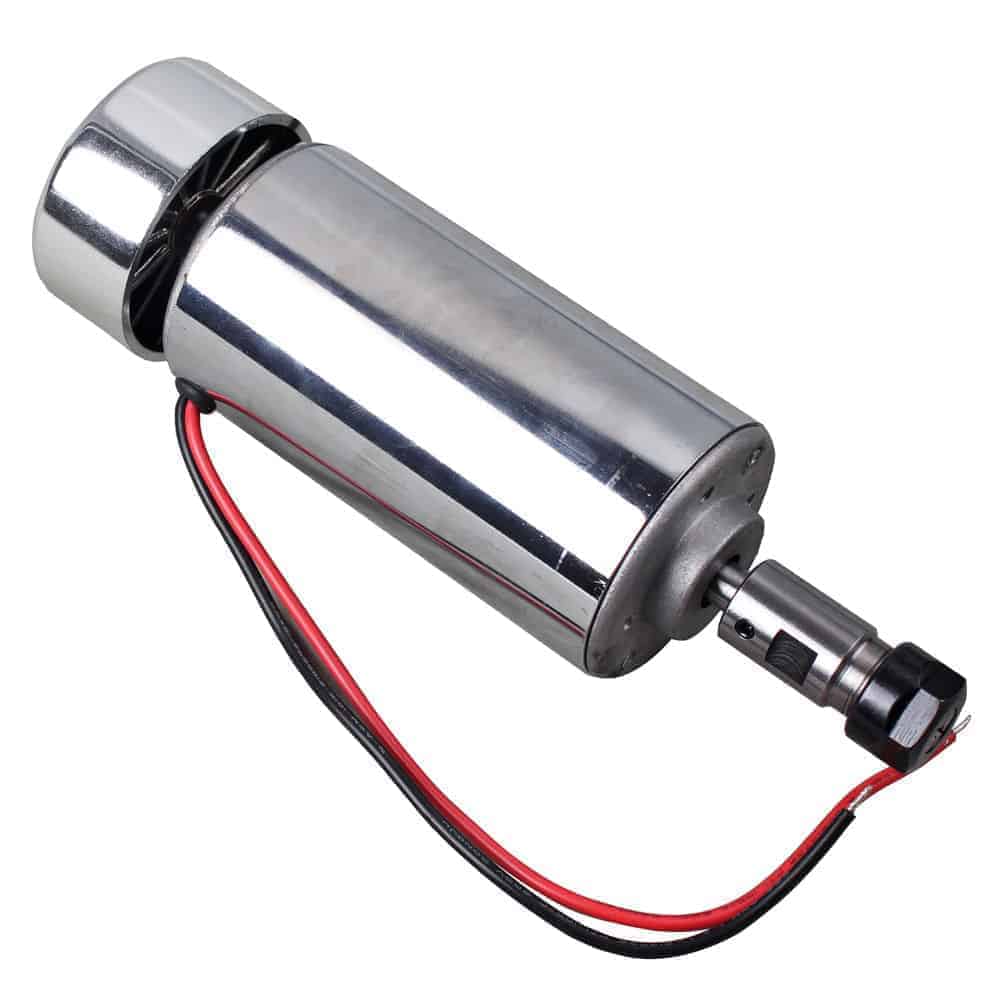

      300W 48V 52mm High Speed Spindle Motor 12000rpm er11 CNC Collet for DIY Engraving

      Specification:

      Motor: Brushless DC motor
      Voltage: 12-48VDC motor
      Power: 300W
      Speed: 3000-12000r/min(12V/3000r,24V/6000r,36V/9000r,48V/12000r)
      Torqu: 400mN.m
      Insulation Resistance: >2 megohms
      Dielectric Strength: 400V
      Diameter: 52mm
      Axis Collet Length: 35mm
      Axis Collet Diameter: 16mm
      Motor Length: 175mm (inculding gripping parts and motor )
      Spindle Radial Runout: About 0.01-0.04

      What you will receive:

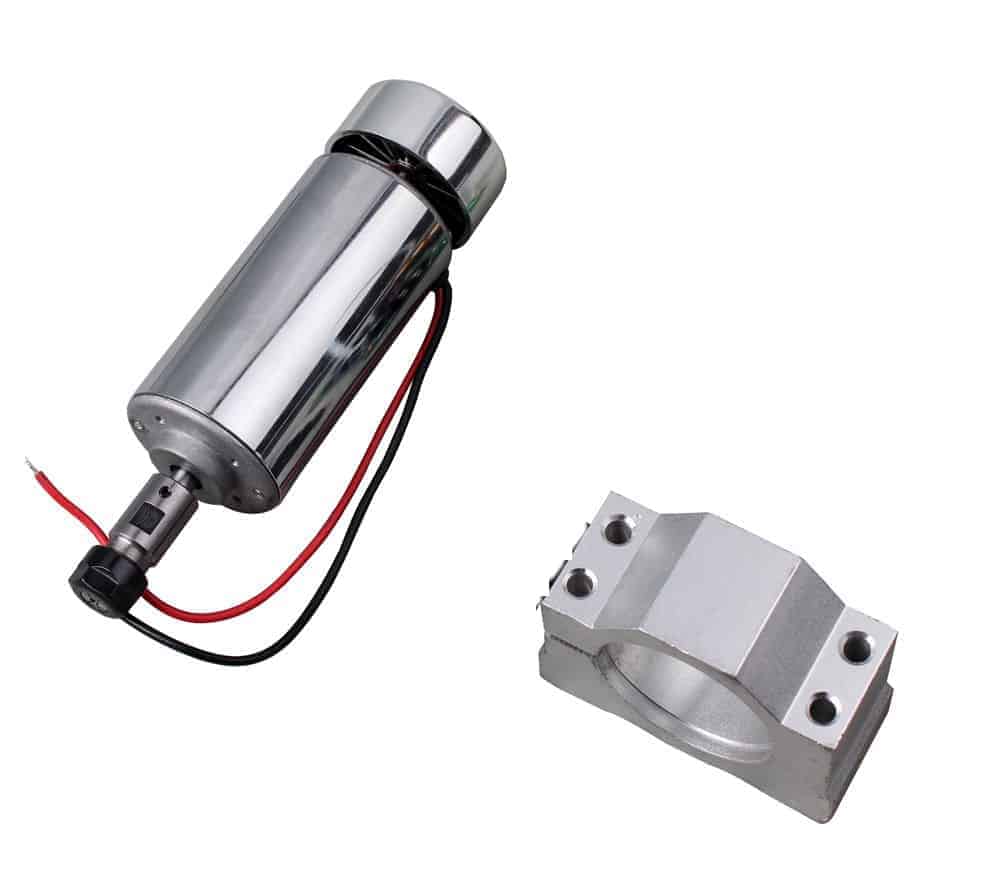

      1 x ER11 48V 300W Spindle Motor and Mount
