2x HC-SR04 Ultrasonic Range Finder Distance Measuring Module Sensor Arduino

Description:

HC-SR04 Ultrasonic Range Finder Distance Measuring Module Sensor Arduino Pic UK

How to:

Supply module with 5V, the output will be 5V while obstacle in range, or 0V if not.The out pin of this module is used as a switching output when anti-theft module, and without the feet when ranging modules.

Note : the module should be inserted in the circuit before been power, which avoid producing high level of misoperation;if not, then power again.

Specification:

Working Voltage : 5V(DC)

Static Current: Less than 2mA.

Output Signal: Electric frequency signal, high level 5V, low level 0V.

Sensor Angle: Not more than 15 degrees.

Detection Distance: 2cm-450cm.

High Precision: Up to 0.3cm

Input Trigger Signal: 10us TTL impulse

Echo Signal : output TTL PWL signal

Mode of connection:

1.VCC

2.trig(T)

3.echo(R)

4.GND

What you will receive:

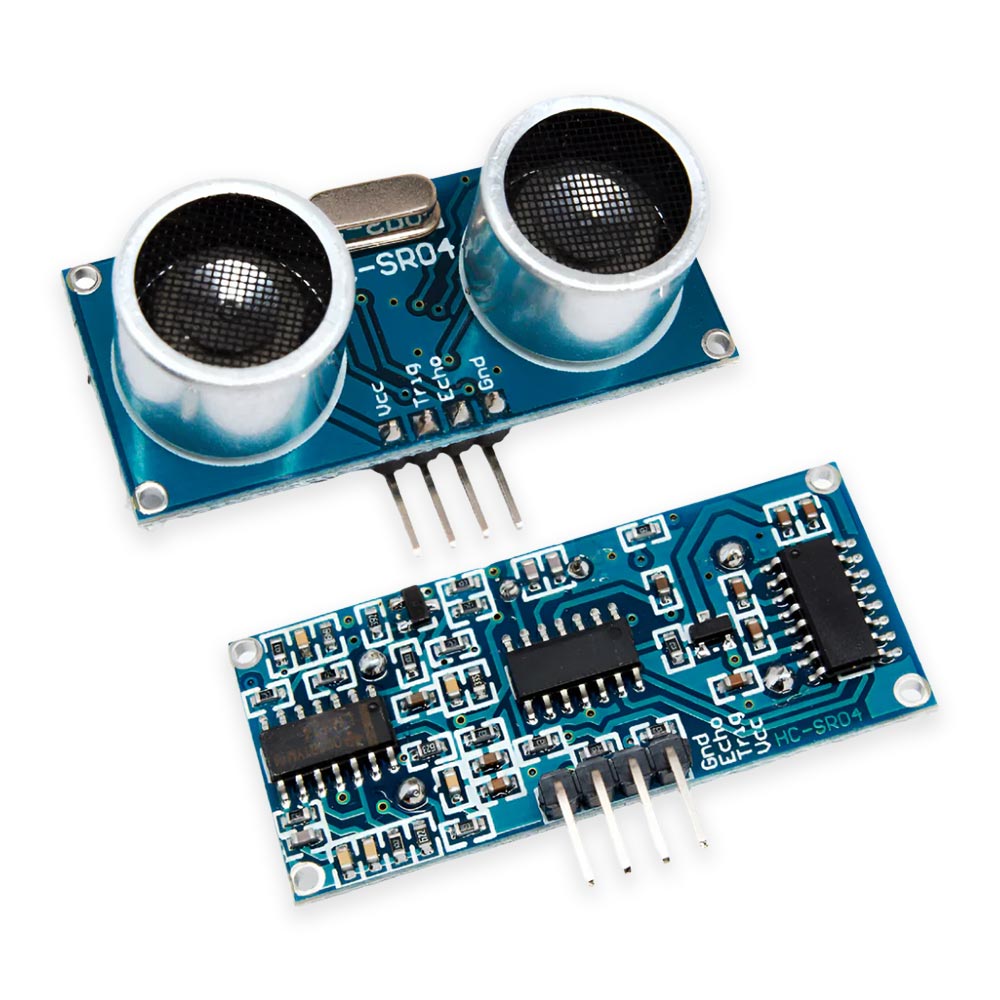

2 x HC-SR04 Ultrasonic Module Distance Measuring Transducer
