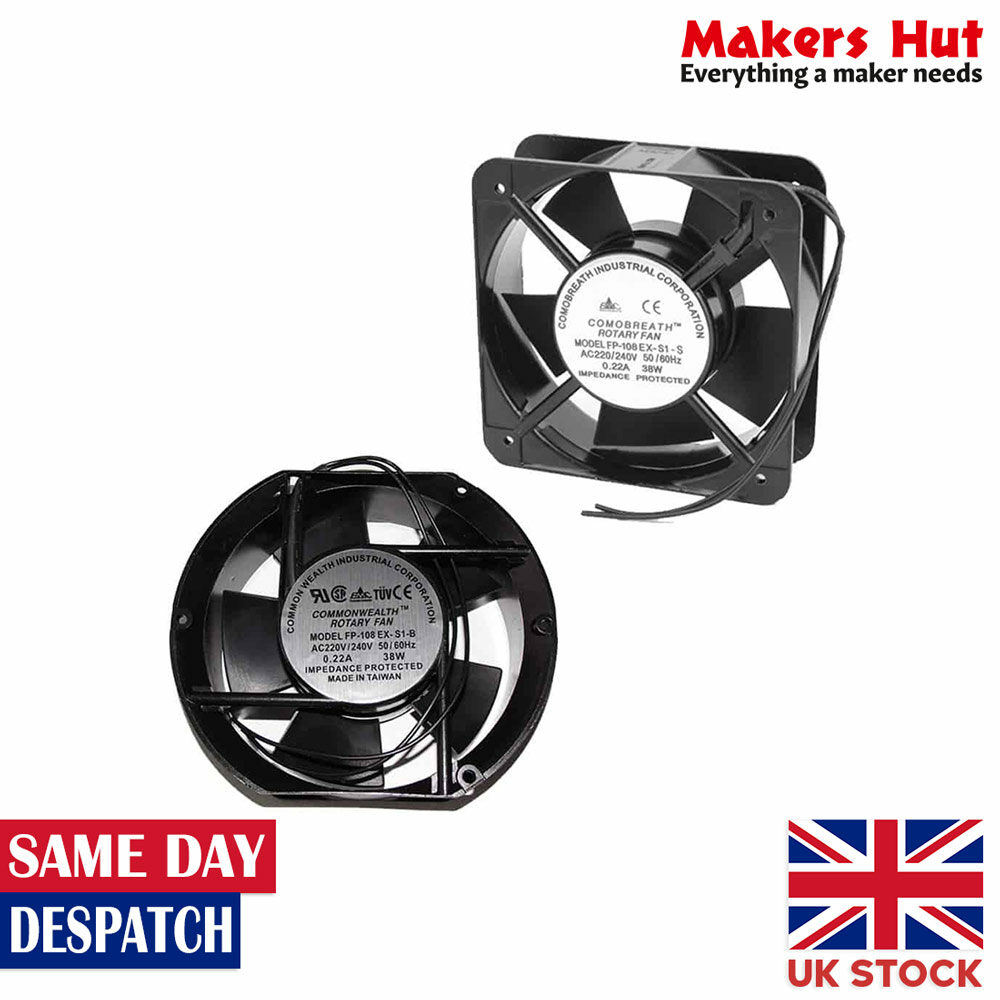

15cm/17cm AC 220V 240V – 0.22A – 38W – Axial Cooling Fan – Cabinet Project

Description:

15cm/17cm AC 220V 240V – 0.22A – 38W – Axial Cooling Fan – Cabinet Project

Specification:

Voltage: 220 ~ 240V AC
Frequency: 50/60 (Hz)
Wind blade: Injection molding, PBT + 30% glass line + VO grade flame retardant;
Bearing: High precision, long life and low noise oil bearing;
Insulation: enameled wire with class B insulation,
Air Volume: 5.37 / 6.88 (M3 / min)
Speed: 2700-3100 (R / min)
Temperature Resistance: 120 degrees Celsius;
Insulation Resistance: 500 megaohms or more;
Withstand Voltage: leakage current 0.5mA. withstand voltage 1500V / 1 minute;
Operating Voltage: 220V (voltage range is :185V～245V)
Lifetime: Working temperature 40°C S: (oil) 30,000 hours
Frame: Black paint Aluminum Alloy casting anticorrosion and anti wet structure;
Connection Mode: 2 wire type

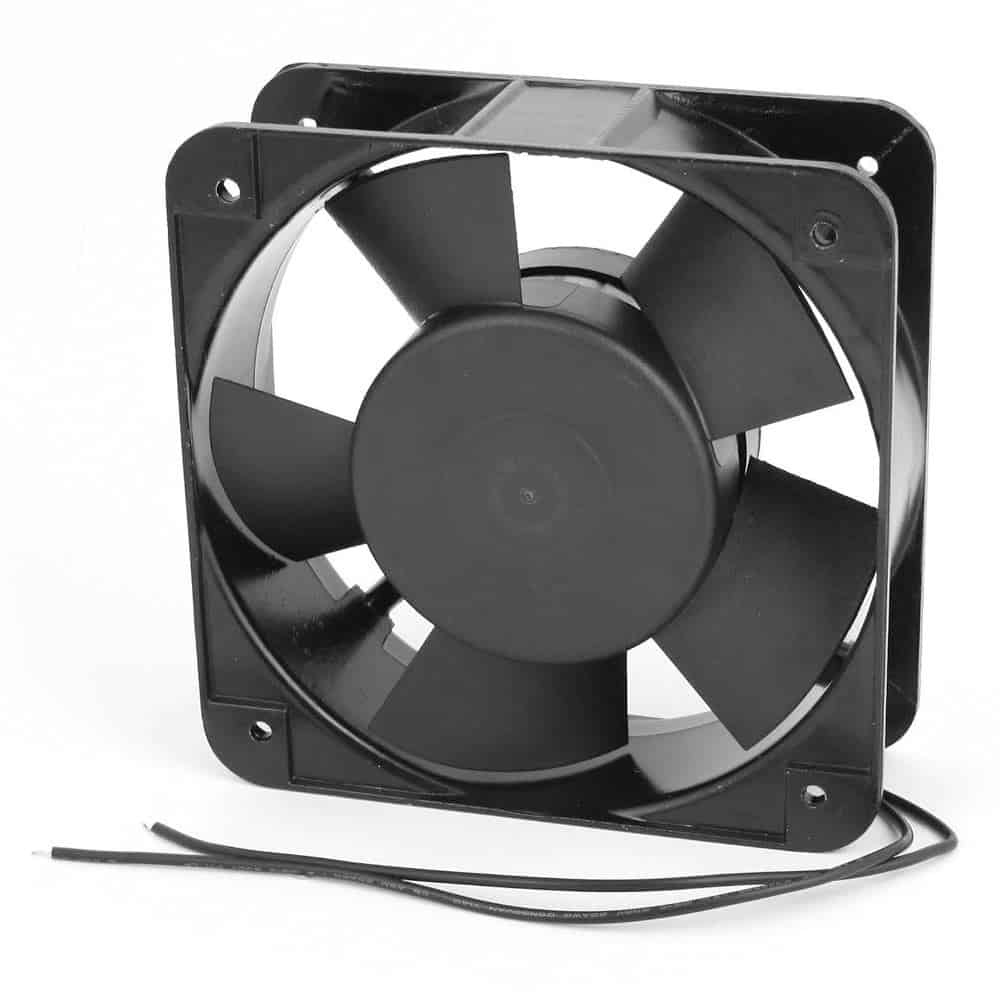

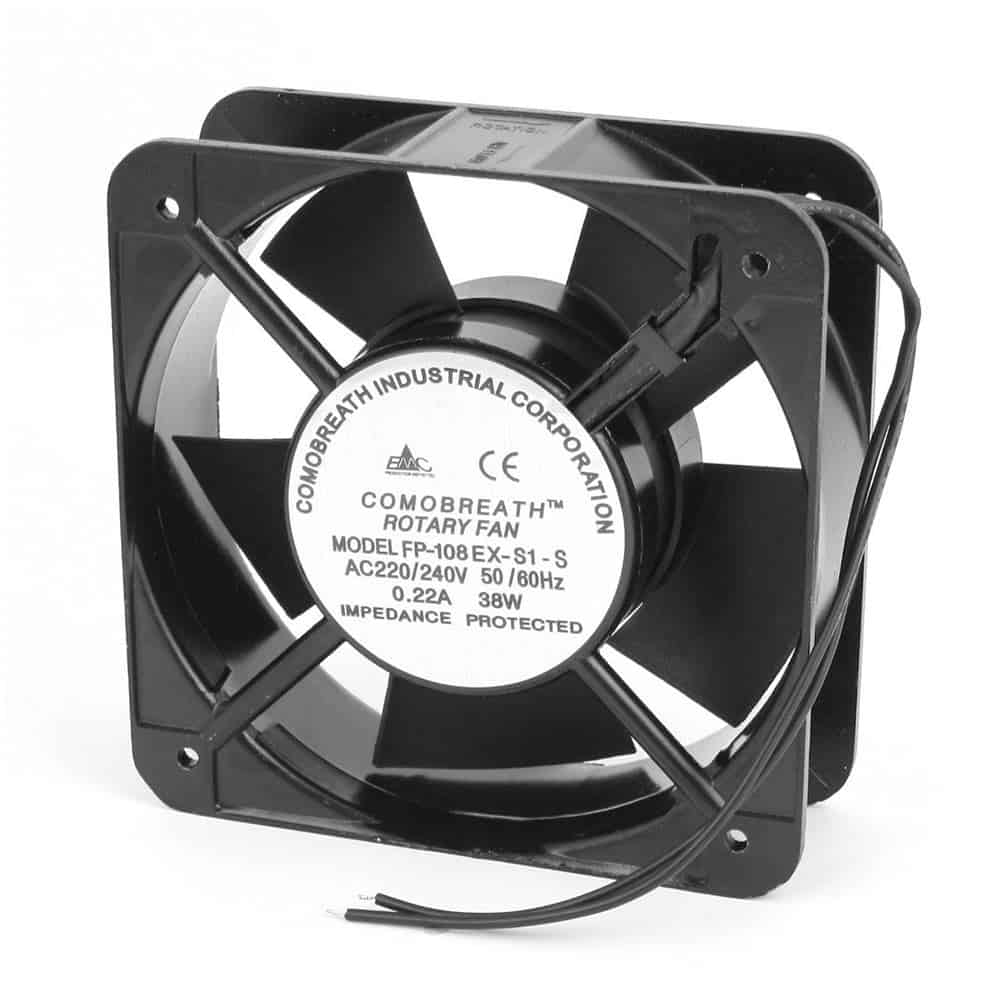

15cm Cooling Fan (Square)

Specification: 150 x 150 x 50mm
Power: 38/35 (W)
Noise: 56/61 (dB-A)
Weight: 950g
Ambient Temperature: (℃): – 20 ℃ ~ 75 ℃ B: (Ball Bearing)

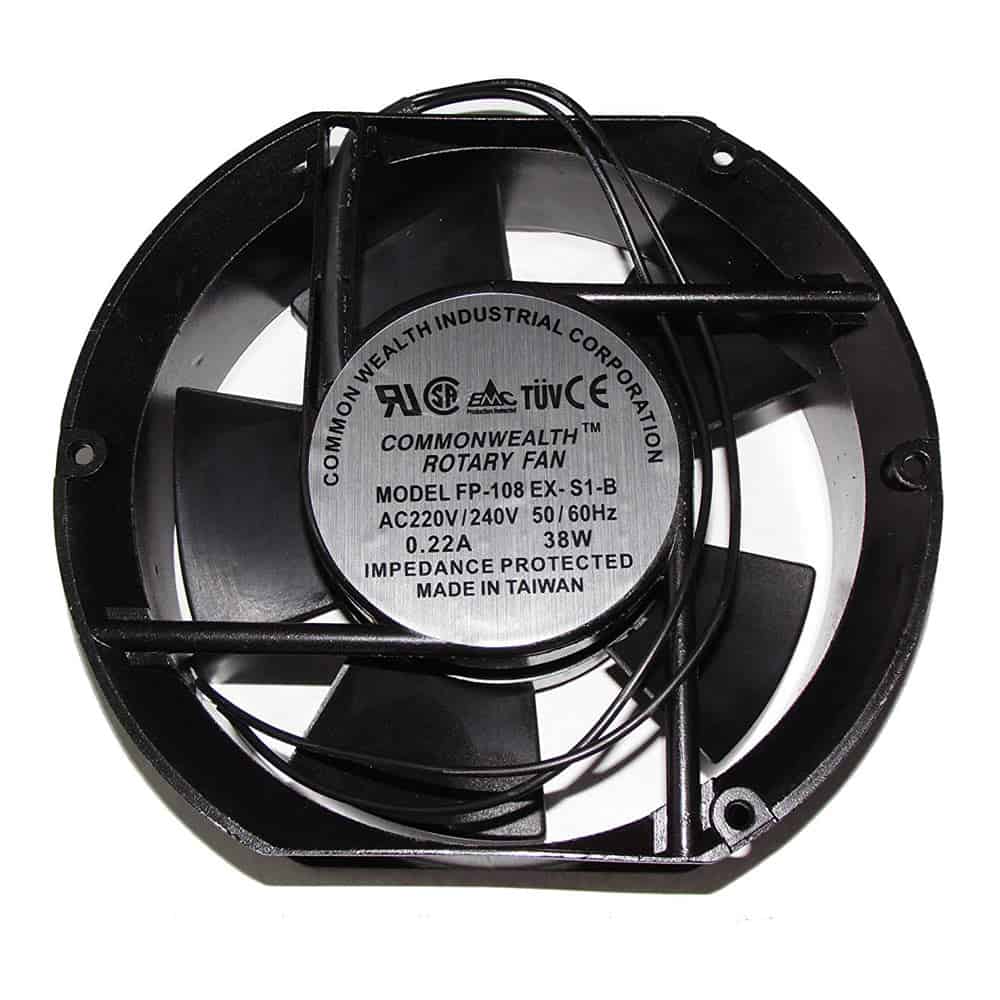

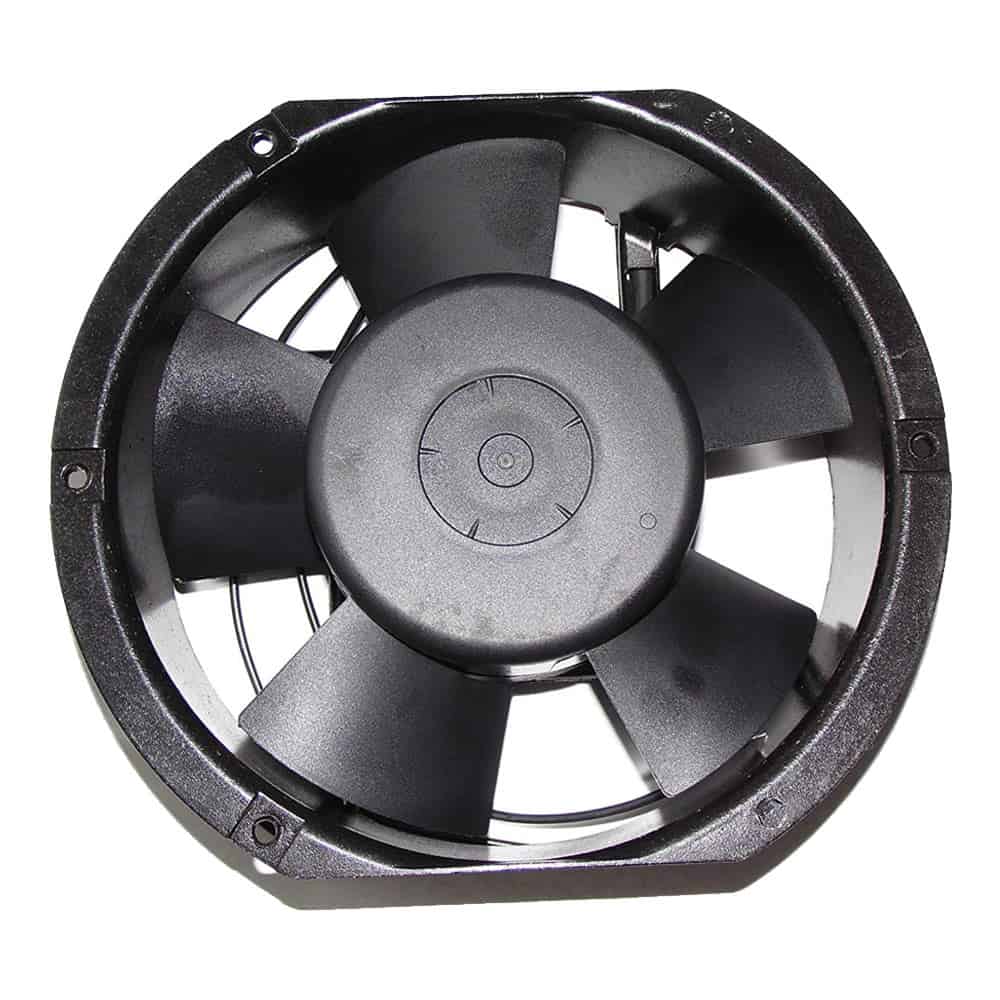

17cm Cooling Fan (Rounded)

Specification: 172 x 150 x 51mm
Power: 38 (W)
Noise: 55/60 (dB-A)
Ambient temperature: (°C): -10°C～50°C S: (oily)
Weight: 810g

What you will receive:

1 x Cooling Fan (Please Select Size)

Note: 15cm Cooling Fan (Square) / 17cm Cooling Fan (Rounded)
